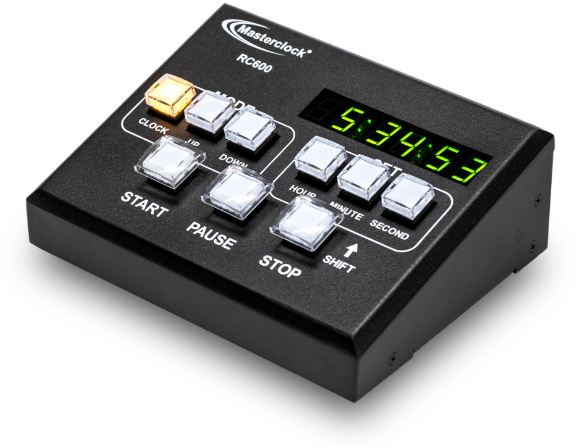

Masterclock RC600
The RC600 is a remote control that adds both count-down and count-up timer control features to our NTDS and TCDS clocks. Reference or generate time input from NTP or time code (IRIG & SMPTE). Control a virtually unlimited number of time code clocks and network clocks.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1000
Standard Features
• Modes include count-down and count-up (99 hour max),
count to time, and clock

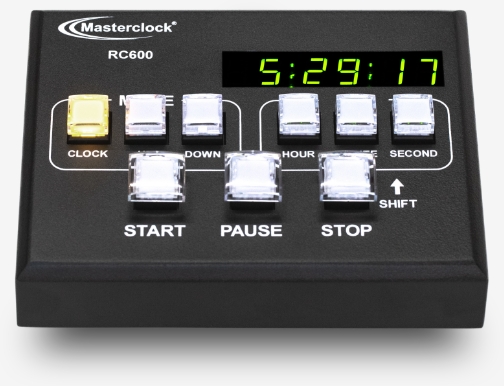

• Illuminated buttons for mode select
• 6-digit LED display
• Reference time from NTP, IRIG-B orSMPTE
(30/25/24 fps non drop frame)
• Generate SMPTE (30/25/24 fps non drop frame)
• Control an unlimited number of network clocks and
devices simultaneously
• Control an unlimited number of time code clocks via
SMPTE BNC output
• Real time clock chip retains time during loss of
power or time reference Options
• Flush-mount version Specifications

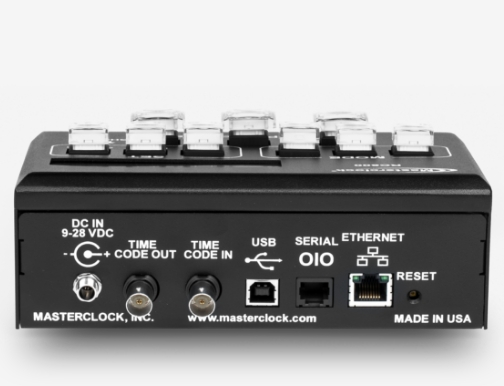

CONNECTORS
• RJ45 - 10/100MB Ethernet
• BNC for time code in/out
• USB for configuration
• DC input - 2.1 mm male jack
INTERFACE
• Network or direct com to NTDS via RJ45
• Time code in and out via BNC connectors
• Illuminated buttons for Mode Select (count-up,
countdown, clock) and Action (start, pause, reset)
NETWORK COMPATABILITY
• Supports NTP, DHCPv4, DHCPv6 for automatic
acquisition of network address, name servers,
and timeserver configuration
• Telnet/SSH communication
• Time code in and out via BNC connectors
CONFIGURATION
• Configure devices through WinDiscovery software or SSH
• Configuration saved to nonvolatile memory and
survives power losses
• Authenticated network messages prevent
unauthorized tampering
POWER
•DC input (115-230, 50/60 Hz)
•Includes external 24 VDC wall-mount power supply with
locking DC plug (UL and CE listed)
•PoE input (48 VDC, IEEE 802.3af) option
OPERATING PARAMETERS
•Temperature: 0 to 60°C
•Humidity: Up to 90% (non-condensing)
PHYSICAL
• Size: 6.82w x 5.24h x 2.37d in (17.32w x 13.31h x 6.02d cm)
• Weight: 2 lbs (0.9 kg)
• Black powder coated steel chassis
• Rubber feet for tabletop use
COMPLIANCE
• FCC, ROHS, CE Marked, ANSI
