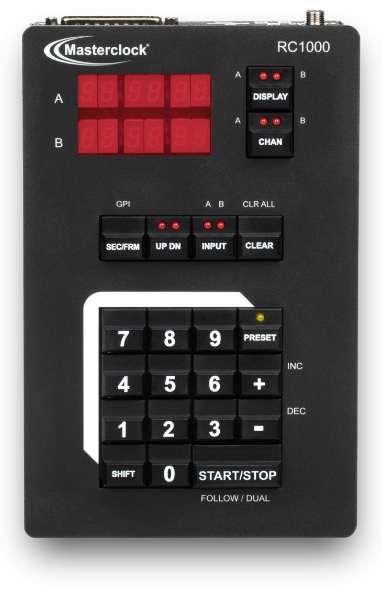

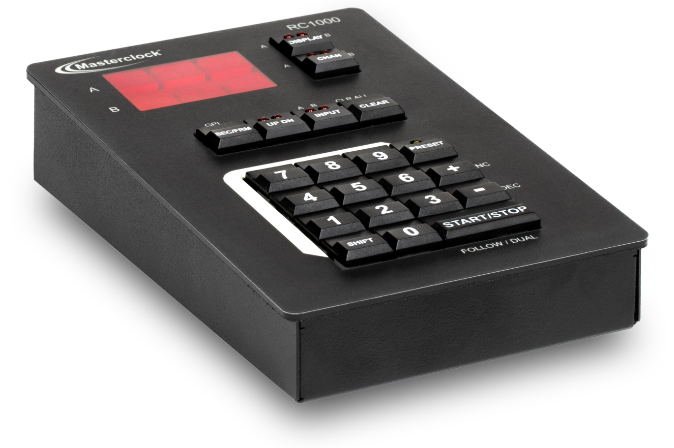

Masterclock RC1000
The RC1000 is a dual-channel up/ down production timer for count and control applications. Supporting both network and time code, this device serves as two counters in one. Counts are entered via a numeric keypad and a new count can be started during production. Each channel generates SMPTE/EBU to sync production equipment. Each channel can also generate network count packets to control our NTDS Series digital clocks.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1001
Standard Features
• 2 independent timing channels
• 6-digit dual displays can show HH:MM:SS or MM:SS:FF
• Generates SMPTE/EBU (30/25/24fps ndf, 29.7df) & network
count packets
• Locks to SMPTE/EBU, IRIG-B, NTP or internal reference
• Add or subtract time for quick calculations
• 20 programmable presets with 6 count sequence chaining
• 2 GPI inputs & 2 GPI outputs (opto-isolated TTL)
• Redundant DC & PoE power
• High visibility keypad in dark environments Specifications

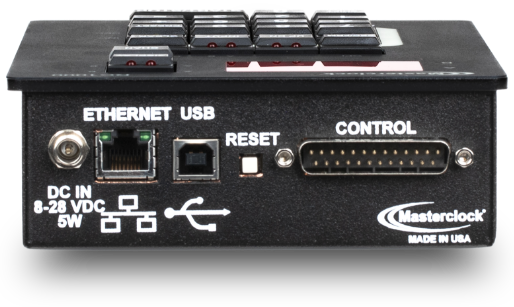

CONNECTORS
• DB25 – time code I/O, RS232, GPI I/O
(DB-25 terminal block adapter included)
• RJ45 10/100MB - configuration, network communications
and PoE power
• USB - configuration
• DC input 2.1 mm male jack - power
ADDITIONAL FEATURES
• Fully configurable offsets for time zone and DST
• WinDiscovery software included
• Configure device manually, or via network using WinDiscovery
or Telnet/SSH, or through direct connection using USB
• Supports NTP, DHCPv4, DHCPv6 for automatic
network acquisition
• IPv4, IPv4/IPv6 supported
• SNMP with custom MIB
• LED brightness control
POWER
• PoE (48VDC, IEEE 802.3af)
• DC input 9-28VDC (24VDC wall-mount power supply
with locking DC plug included)
PHYSICAL
• Size: 5.2x8x1.75 in (13.2x20.3x4.4 cm)
• Weight: 1.8 lb (0.82 kg)
• Temperature: 0 to 60 C
• Humidity: Up to 90% (non-condensing)
• Black powder coated steel chassis
• Rubber non-slip feet for tabletop use
COMPLIANCE
• FCC, ROHS, CE Marked, ANSI
