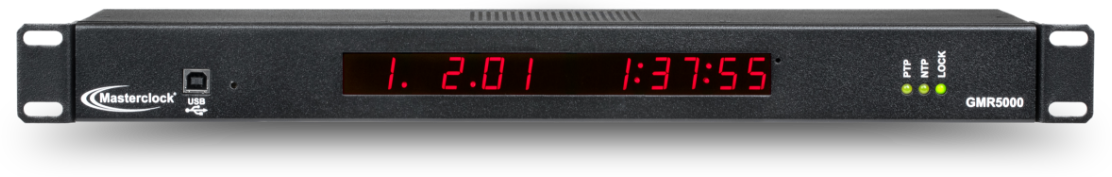

Masterclock GMR5000

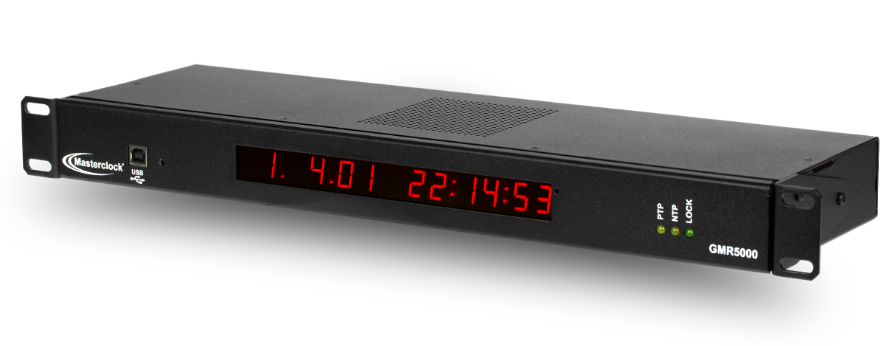

The GMR5000 is a 1U rack mount time and frequency generator/server that can reference a variety of timing sources and provide a range of outputs. Using standard NTP polling rates, the device can support and synchronize thousands of simultaneous NTP clients. Base model includes both NTP client and server functionality compatible with IPv4/IPv6 networks and SSH encryption for secure communications.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1213
Standard Features
• 13-digit display (Date/Time or Day of year/Time)
• Programmable relay closure - NO/NC dry contact relay
• Relay alerts loss of sync by default
• Fully configurable offsets for time zone and DST
• Secure configuration and monitoring with SSH SHA2
AES256 encryption
• SNMPv3 with custom MIB
• IPv4/IPv6 compatible
• WinDiscovery configuration software included Specifications
STANDARD INPUTS
• NTP client via RJ45 10/100 Mb Ethernet (dual-port)
• NMEA 0183 via RS232/422
• NENA format 0,1,8 via RS232/422
• Internal high-stability TCXO oscillator ± 3 sec./year
• Configuration via USB or Ethernet
INPUT OPTIONS
• GPS Receiver – 12 channels
• GNSS Receiver - 72-channels - GPS/QZSS L1 C/A, GLONASS L10F,
BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS,
GAGAN Galileo E1B/C
• Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM) (See TCR Options
Data Sheet for additional IRIG options)
• SMPTE 12M, 309M, 24/25/30 fps, 29.97 drop frame
• High-Stability Oscillator options:
• a. Internal high-stability OCXO oscillator ± 0.25 sec/year
• b. Rubidium Oscilator ±1 mS/year
• Synchronizing pulses: PPS, PPM, PPH
• 10 MHZ Input (CMOS or Sinusoidal)
• Optical Fiber LAN (1 or both ports)
• IEEE 1588v2 Precision Time Protocol
STANDARD OUTPUTS
• NTP server via RJ45 10/100 Mb Ethernet (dual-port)
• NMEA 0183 via RS232/422 serial, or via IP
• NENA format 0, 1, 8 via RS232/422 serial, or via IP
• RS-232/422 • Kinemetrics/Truetime serial protocol RS232/RS422
• 5V at 100mA Pulse Per Second (1PPS) OUTPUT OPTIONS
• Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM), IRIG-A0 (DCLS),
IRIG-A1 (AM), IRIG-E0 (DCLS), IRIG-E1 (AM), IRIG-H0 (DCLS),
HAVE QUICK II NON-NATO, SMPTE 12M, 309M, 24/25/30 fps and
29.97 drop frame
• 5V at 100mA Programmable Pulse Output (PPO)
• Optical Fiber LAN (1 or both ports)
• 10 MHZ Output (Sinusoidal) (1 MHz & 5 MHz requires
Rb (HSO-3) option)
• IEEE 1588v2 Precision Time Protocol
COMPLIANCE
• FCC, ROHS, CE Marked, ANSI
OPERATING PARAMETERS
• Temperature: 0 to 60°C
• Humidity: Up to 90% (non-condensing)
• MTBF: 625,979 hours (Calculated using Fixed/Ground Mil
HDBK 217F assumptions)
POWER AND DIMENSIONS
• Universal IEC C14 AC input connector
• AC Input 100-240 VAC, 50/60 Hz
• POWER <15W (<20 with Rb option)
• Size: 16.90w x 1.750h x 5.174d in (42.92w x 4.445h x 13.14d cm)
• Weight: 2.6 lbs. (1.2 kg)
• 13-digit display (Date/Time or Day of year/Time)
• Programmable relay closure - NO/NC dry contact relay
• Relay alerts loss of sync by default
• Fully configurable offsets for time zone and DST
• Secure configuration and monitoring with SSH SHA2
AES256 encryption
• SNMPv3 with custom MIB
• IPv4/IPv6 compatible
• WinDiscovery configuration software included Specifications
STANDARD INPUTS
• NTP client via RJ45 10/100 Mb Ethernet (dual-port)
• NMEA 0183 via RS232/422
• NENA format 0,1,8 via RS232/422
• Internal high-stability TCXO oscillator ± 3 sec./year
• Configuration via USB or Ethernet
INPUT OPTIONS
• GPS Receiver – 12 channels
• GNSS Receiver - 72-channels - GPS/QZSS L1 C/A, GLONASS L10F,
BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS,
GAGAN Galileo E1B/C
• Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM) (See TCR Options
Data Sheet for additional IRIG options)
• SMPTE 12M, 309M, 24/25/30 fps, 29.97 drop frame
• High-Stability Oscillator options:
• a. Internal high-stability OCXO oscillator ± 0.25 sec/year
• b. Rubidium Oscilator ±1 mS/year
• Synchronizing pulses: PPS, PPM, PPH
• 10 MHZ Input (CMOS or Sinusoidal)
• Optical Fiber LAN (1 or both ports)
• IEEE 1588v2 Precision Time Protocol
STANDARD OUTPUTS
• NTP server via RJ45 10/100 Mb Ethernet (dual-port)
• NMEA 0183 via RS232/422 serial, or via IP
• NENA format 0, 1, 8 via RS232/422 serial, or via IP
• RS-232/422 • Kinemetrics/Truetime serial protocol RS232/RS422
• 5V at 100mA Pulse Per Second (1PPS) OUTPUT OPTIONS
• Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM), IRIG-A0 (DCLS),
IRIG-A1 (AM), IRIG-E0 (DCLS), IRIG-E1 (AM), IRIG-H0 (DCLS),
HAVE QUICK II NON-NATO, SMPTE 12M, 309M, 24/25/30 fps and
29.97 drop frame
• 5V at 100mA Programmable Pulse Output (PPO)
• Optical Fiber LAN (1 or both ports)
• 10 MHZ Output (Sinusoidal) (1 MHz & 5 MHz requires
Rb (HSO-3) option)
• IEEE 1588v2 Precision Time Protocol
COMPLIANCE
• FCC, ROHS, CE Marked, ANSI
OPERATING PARAMETERS
• Temperature: 0 to 60°C
• Humidity: Up to 90% (non-condensing)
• MTBF: 625,979 hours (Calculated using Fixed/Ground Mil
HDBK 217F assumptions)
POWER AND DIMENSIONS
• Universal IEC C14 AC input connector
• AC Input 100-240 VAC, 50/60 Hz
• POWER <15W (<20 with Rb option)
• Size: 16.90w x 1.750h x 5.174d in (42.92w x 4.445h x 13.14d cm)
• Weight: 2.6 lbs. (1.2 kg)
