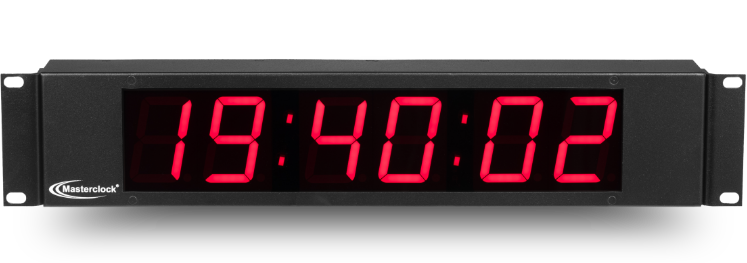

Masterclock TCDS26
The TCDS26 digital clock syncs to IRIG-B, SMPTE and EBU time codes for accurate traceable time. Each unit configures to time zone and daylight savings time parameters. WinDiscovery software is included.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1319
Features
• 2.3-in (5.8 cm) 6-digit LED display available in
red, green, blue, amber or white
• Reads IRIG-B, SMPTE 12M, 309M, 24/25/30 fps,
29.97 drop frame
• Retains time and date during loss of power and/or reference
using a battery backed real-time clock (RTC) chip and
maintenance-free rechargeable battery
• Configures to time zone and daylight saving time parameters
• WinDiscovery software utility included - provides easy
configuration of clocks
• Configuration is saved to non-volatile memory and survives
power losses
• Password protection prevents unauthorized clock
configuration tampering
• Display time in 12- or 24-hr format – hh:mm:ss
• Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd
• Configurable to alternate showing date and time automatically
• Adjustable brightness levels with auto-dimming option
• Visibility: 100 feet (30 meters) • Wall-mount bracket
• Dry contact relay option
• PM indicator
Options
• Rack-mount (2U) bracket
• Tilt-wall bracket • Flush-mount bracket
Specifications

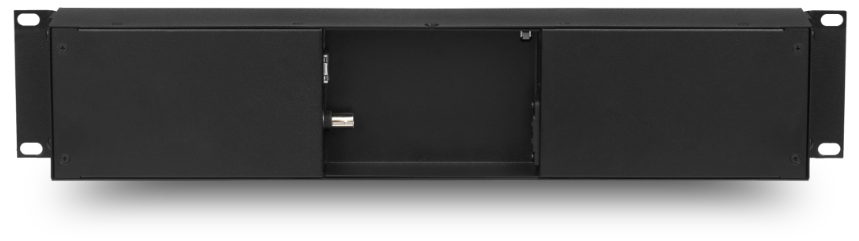

Connectors
• BNC female
• 3-pin terminal block
• USB for configuration
• DC input - 2.1 mm female
• IEC Stnd A/C Power
Power
• Choice of – IEC AC or DC (24 VDC)
• International IEC AC 90-240v, 50/60 Hz
• Power consumption <15W
Operating Parameters
• Temperature: 0 to 60°C
• Humidity: Up to 90% (non-condensing)
Physical
• Black powder-coated steel chassis Size: 17w x 3.5h x3d in
(43.2w x 8.9h x 7.6d cm) Weight: 8.0 lbs (3.63 kg)
Compliance
• FCC, ROHS, CE Marked, ANSI
