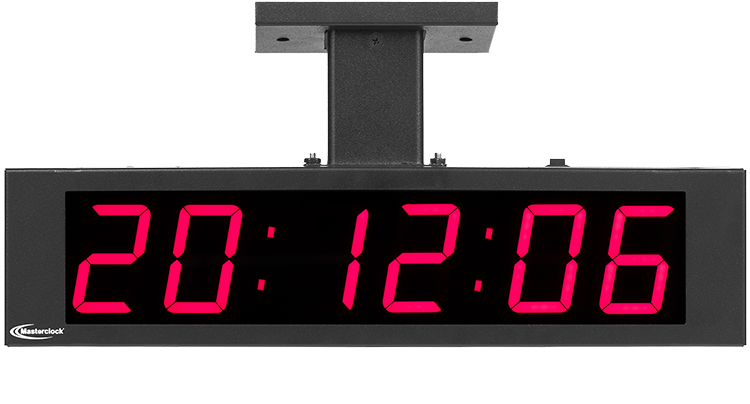

Masterclock TCDS26-DF
The TCDS26-DF digital clock syncs to IRIG-B, SMPTE and EBU time codes for accurate traceable time. Each unit configures to time zone and daylight savings time parameters. WinDiscovery software is included.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1320
Features
• 2.3-in (5.68 cm), 6-digit LEDs available in
red, green, blue, amber or white
• Reads IRIG-B, SMPTE 12M, 309M, 24/25/30 fps, 29.97 drop frame
• Retains time and date during loss of power and/or
reference using a battery backed real-time clock (RTC) chip
and maintenance-free rechargeable battery
• Configures to time zone and daylight saving time parameters
• WinDiscovery software utility included - provides easy configuration of clocks
• Configuration is saved to non-volatile memory and survives power losses
• Password protection prevents unauthorized clock configuration tampering
• Display time in 12- or 24-hr format – hh:mm:ss
• Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd
• Configurable to alternate showing date and time automatically
• Custom colors and logos available (special orders)
• Adjustable brightness levels with auto-dimming option
• Visibility: 100 feet (30 meters)
• Dry contact relay option
• PM indicator
Options
• Side wall-mount bracket
Specifications

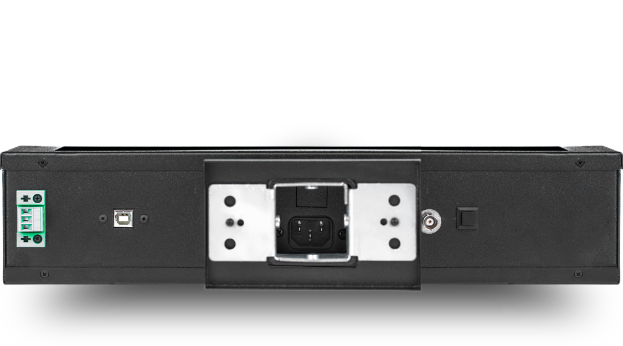

Connectors
• BNC female
• 3-pin terminal block
• USB for configuration
• DC input - 2.1 mm female
• IEC Stnd A/C Power
Power
• Choice of – IEC AC or DC (24 VDC)
• International IEC AC 90-240v, 50/60 Hz
• Power consumption <15W Operating Parameters
• Temperature: 0 to 60°C
• Humidity: Up to 90% (non-condensing) Physical
• Black powder-coated steel chassis
Size: 15.25w x 7h x 3.5d in (38.7w x 18h x 9d cm)
Weight: 6 lbs (2.72 kg)
Compliance
• FCC, ROHS, CE Marked, ANSI
