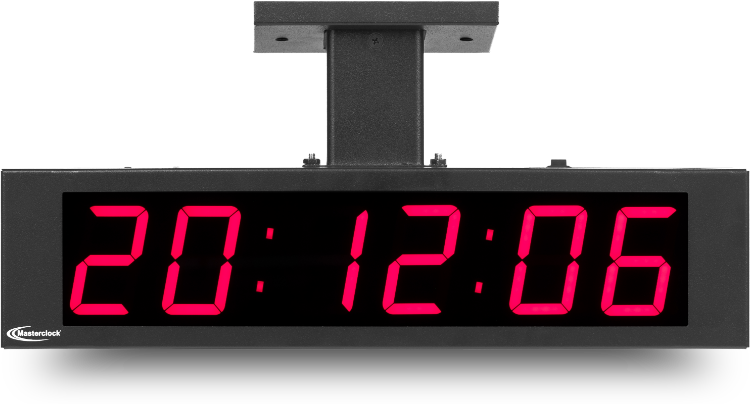

Masterclock NTDS26-DF
The NTDS26-DF Digital Clock syncs to any NTP (Network Time Protocol) source for accurate and traceable time. Powerable via PoE, this double-faced unit configures to time zone and Daylight Saving Time parameters. WinDiscovery software is included.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1259
Standard Features
• Double-faced, 2.3 in (5.8 cm) 6-digit LED display
• LED available in red, green, blue or amber
• Syncs to any NTP or SNTP source
• Retains time and date during loss of power and/or reference
using a battery backed real-time clock (RTC) chip and
maintenance-free rechargeable battery
• Configures to time zone and Daylight Saving Time
• WinDiscovery software utility included for easy configuration
of clocks and generators whin a network
• Fully configurable network settings, including
DHCP / STATIC IP
• Configuration is saved to non-volatile memory and
survives power losses
• Password protection prevents unauthorized tampering
• Display time in 12- or 24-hr format – hh:mm:ss
• Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd
• Auto alternate between date and time display
• PM indicator • Adjustable brightness levels with
scheduled dimming
• Visibility: 100 feet (30 meters) Options
• Side wall-mount bracket
Specifications

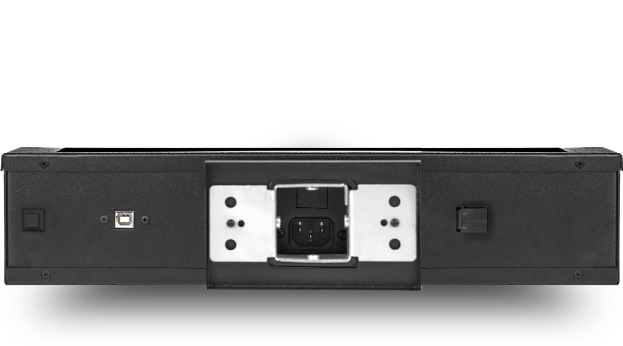

CONNECTORS
• Ethernet RJ45
• IIEC AC Power
• DC input
• USB for configuration
POWER
• Choice of IEC AC, PoE (IEEE802.3af) or DC (24 VDC)
• International IEC AC 90-240v, 50/60 Hz
• Power consumption < 15W OPERATING
PARAMETERS
• Temperature: 0 to 60°C
• Humidity: Up to 90% (non-condensing)
• Storage Temperature: -40° to 185° F (-40° to 85°C)
• Storage Humidity: Up to 90% (non-condensing @ 25°C)
PHYSICAL
• Black powder-coated steel chassis
• IP Rating: IP40
• Size: 15.25w x 7h x 3.5d in (38.7w x 18h x 9d cm)
• Weight: 6 lbs (2.72 kg)
MTBF • 86,700 - 100,000 hrs
All calculated using Fixed/Ground Mil HDBK 217F assumption
COMPLIANCE
• FCC, ROHS, CE Marked, ANSI
