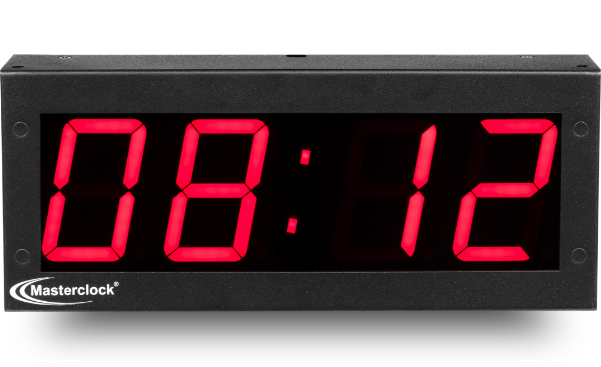

Masterclock NTDS24
The NTDS24 Digital Clock syncs to any NTP (Network Time Protocol) source for accurate traceable time. The unit configures to time zone and Daylight Saving Time parameters and can be powered via PoE. WinDiscovery software is included.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 889-1255
Standard Features
• 2.3 in (5.8 cm) 4-digit LED display
• LED available in red, green, blue or amber
• Syncs to any NTP or SNTP source for accurate
and traceable time
• Retains time and date during loss of power and/or
reference using a battery backed real-time clock (RTC)
chip and maintenance-free rechargeable battery
• Configures to time zone and Daylight Saving Time
• WinDiscovery software utility included for easy configuration
of clocks and generators within a network
• Fully configurable network settings, including DHCP / STATIC IP
• Configuration is saved to non-volatile memory and survives
power losses
• Password protection prevents unauthorized tampering
• Display time in 12- or 24-hr format – hh:mm
• Display date – mm:dd
• Auto alternate between date and time display
• PM indicator • Adjustable brightness levels with
scheduled dimming
• Visibility: 100 feet (30 meters)
Options
• Tilt-wall bracket
• Flush-mount bracket
• Stainless steel case
• Ceiling mount bracket
Specifications
CONNECTORS
• Ethernet RJ45
• DC input
• USB for configuration
POWER
• Choice of PoE (IEEE802.3af) or DC (24 VDC)
• Power consumption < 8W
OPERATING PARAMETERS
• Temperature: 0 to 60°C
• Humidity: Up to 90% (non-condensing)
• Storage Temperature: -40° to 185° F (-40° to 85°C)
• Storage Humidity: Up to 90% (non-condensing @ 25°C)
PHYSICAL
• Black powder-coated steel chassis
• IP Rating: IP40
• Size: 9.31w x 3.82h x 1.85d in (23.6w x 9.7h x 4.7d cm
• Weight: 2.0 lbs (0.9 kg)
MTBF
• 86,700 - 100,000 hrs
All calculated using Fixed/Ground Mil HDBK 217F assumption
COMPLIANCE
• FCC, ROHS, CE Marked, ANSI
