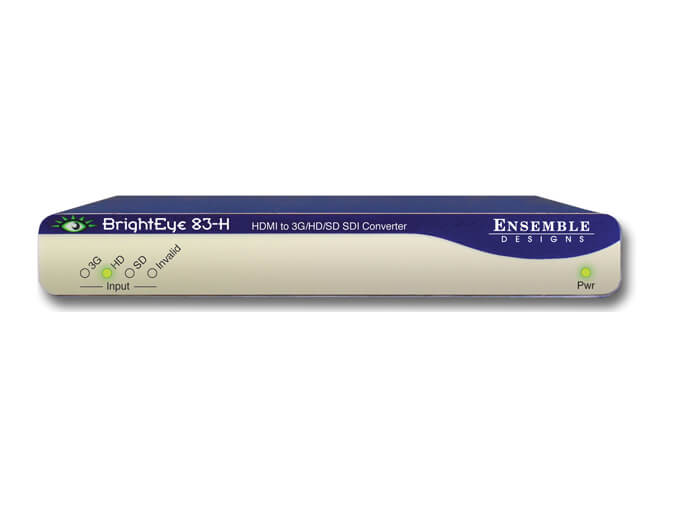

Ensemble Designs BrightEye 83-H: HDMI to 3G/HD/SD-SDI (HDCP Support)

Ensemble Designs BrightEye 83-H: HDMI to 3G/HD/SD-SDI (HDCP Support)

13 394 SEK
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 992-4034

Convert HDMI to 3G/HD/SD SDI with the BrightEye 83-H. The output format follows the input, faithfully preserving the input’s resolution and frame rate. Perfect for GoPro, Replay and other video cameras and sources with an HDMI output, BrightEye 83-H presents the serial digital video signal on two BNC outputs.

Signal monitoring and control is provided through the included BrightEye Mac and BrightEye PC software.

Specifications

Input

  • Number One, supports HDCP encrypted content
  • Type HDMI 1.3
  • Format Supports HDMI signals which map to the video standards listed below

SDI Standards Supported

  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
  • 720p (SMPTE 296M -1,2,3) 50,59.94 or 60 Hz
  • 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
  • 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
  • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
  • 525i, 625i (SMPTE 259M)

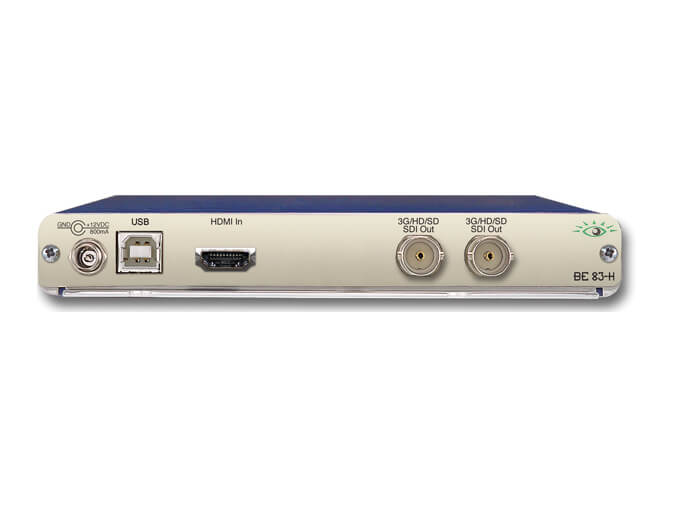

Serial Digital Output

  • Number Two, BNC
  • Signal Type Follows input
  • Impedance 75 Ω
  • Return Loss >15 dB to 1.485 GHz >10 dB to 2.97 GHz
  • Output DC None (AC coupled)

General Specifications

  • Size 5.625” W x 0.8” H x 5.5” D(143 mm x 20 mm x 140 mm) including connectors
  • Power 12 volts, 5 watts (100-230 VAC modular power supply)
  • Temperature Range 0 to 40° C ambient (all specs met)
  • Relative Humidity 0 to 95° non-condensing
