Decimator Design DMON-12S
14 380 SEK
12 channel multiviewer with SDI and HDMI outputs for 3G/HD/SD
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 280-1012

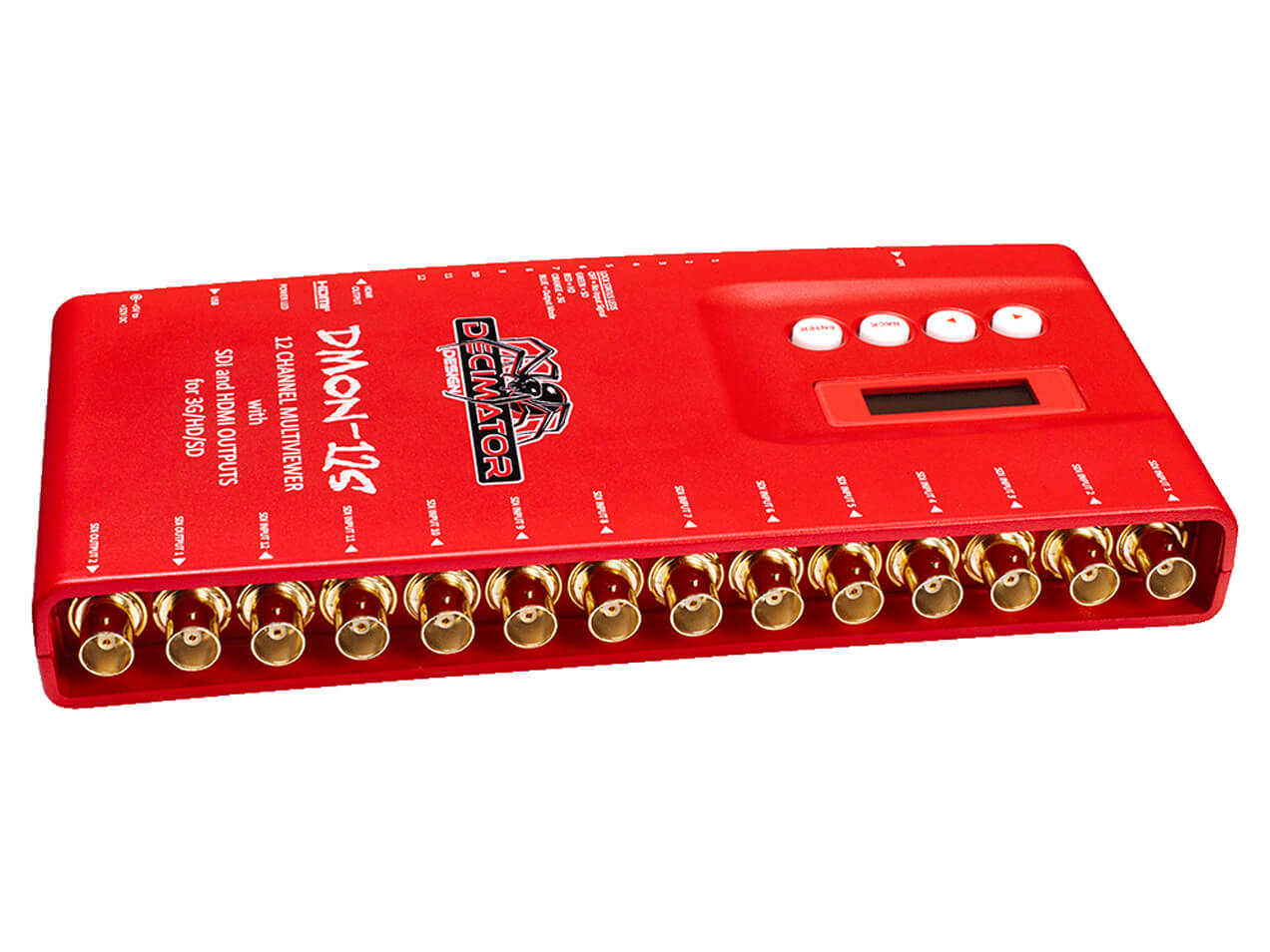

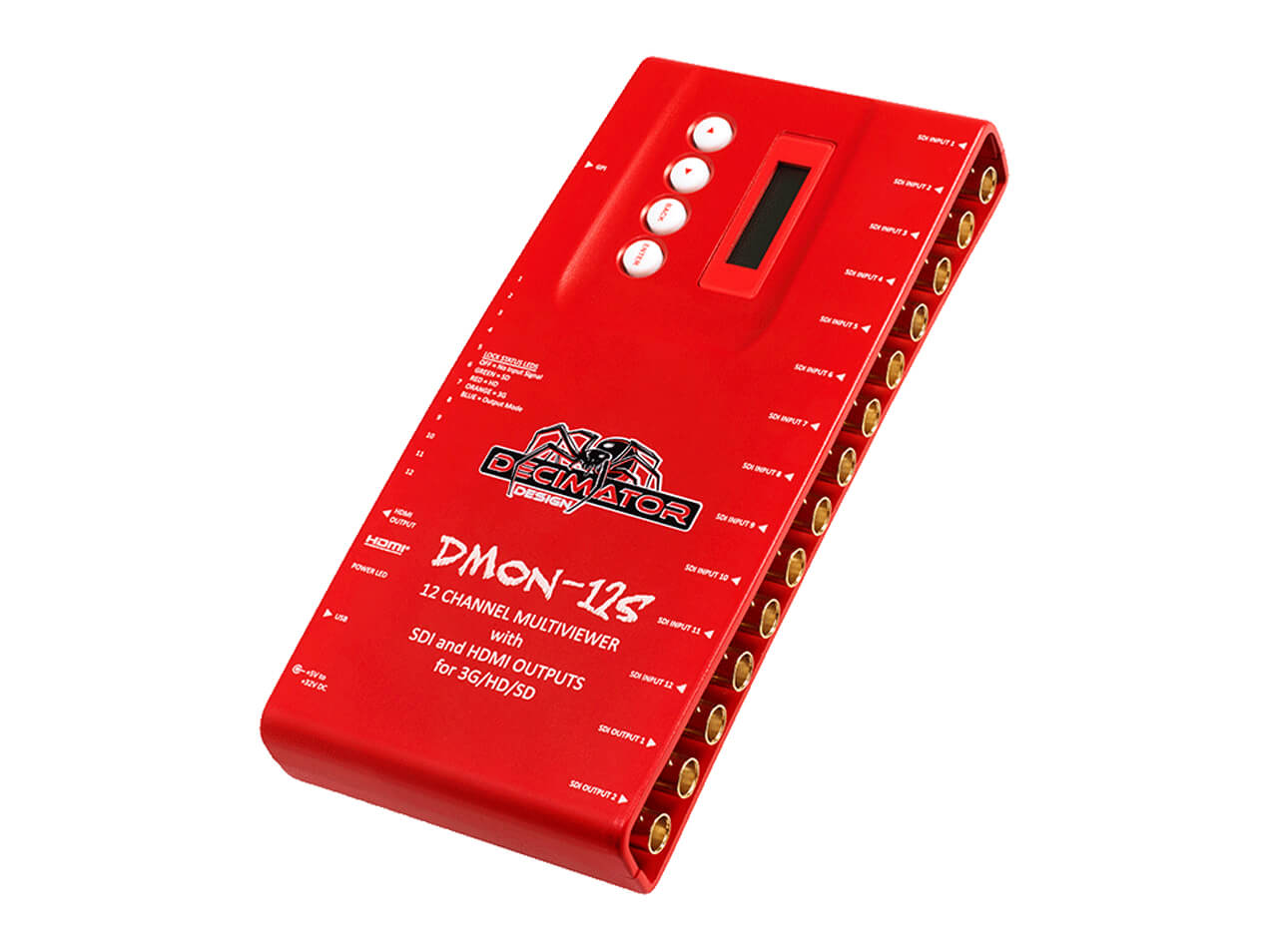

The DMON-12S from Decimator Design is a low cost, miniature 12 to 1 Multiviewer. The 12 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds. Select from preset layouts or customise your own, depending on the number of feeds you wish to monitor. The Decimator DMON-12S multiviewer allows you to:
- Monitor between 1 and 12 independent 3G/HD/SD-SDI feeds
- Select your output format over SDI and/or HDMI
- Fully customisable layouts with ability to save & load
- 16 character customisable UMD overlay per window
- 16 channel customisable Audio Metering overlay per window
- Safe Action, Safe Title and Centre Cross overlays
- Monitor variable aspect ratios per quadrant
- Auto Detect & display any format of any frame rate simultaneously
- Select any of the 12 inputs for pass-through
- Dynamic UMDs via TSL protocol on RS422/485
- Control from a distance via USB on a Mac/PC app or via 32-Pin GPI
- Control on-unit using the buttons and LCD screen
- Toggle one feed to fullscreen
This product replaces the DMON-10S - all customers who pre-ordered the 10s will receive a DMON-12S (same price!).
DMON-12S comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.
