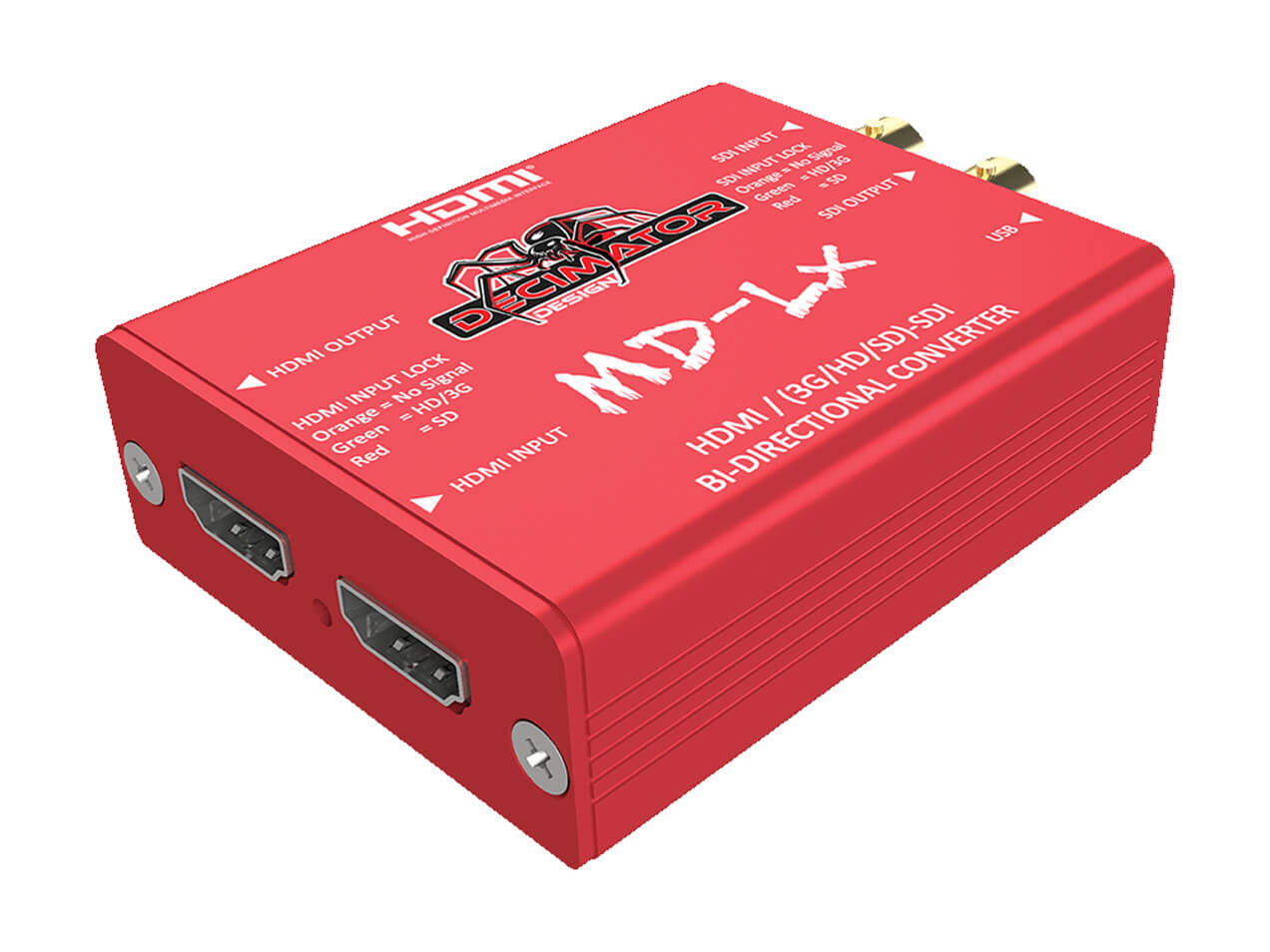

Decimator Design MD-LX

Decimator Design MD-LX

1 240 SEK
HDMI / SDI Bi-Directional Converter
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Maila för leveranstid

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 280-1020

The MD-LX from Decimator Design is their new, miniature and low-power HDMI/SDI bi-directional converter.

The Lite version of the popular MD-HX


•  Pocket sized at 60mm x 73.7mm x 23mm
   (2.4”x2.9”x0.9”)

•  Features the following modes:
   1. Auto Select (Active input to all outputs or if both
       inputs are active SDI to HDMI and HDMI to SDI)
   2. HDMI IN to SDI OUT and SDI IN to HDMI OUT
   3. SDI IN to HDMI and SDI OUT
   4. HDMI IN to HDMI and SDI OUT

•  Supports 3G Level A and B and allowing for
   conversion between both

SDI FORMATS

3G-A or 3G-B
SMPTE 424M@2.97 and 2.967Gb/s
 • 1080p@60/59.94/50Hz

HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
 • 1080i@60/59.94/50Hz
 • 1080p/psf@30/29.97/25/24/23.98Hz
 • 720p@60/59.94/50/30/29.97/25/24/23.98Hz

SD:SMPTE 259M@270Mb/s
 • 625i50 (PAL)
 • 525i59.94 (NTSC)

HDMI FORMTS
• 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1080i@60/59.94/50Hz
• 720p@60/59.94/50/30/29.97/25
• 625i50 (PAL)
• 525i59.94 (NTSC)

INPUTS
• 1 x HDMI Type A
• 1 x (3G/HD/SD)-SDI

Micro USB for power, control and firmware updates

OUTPUTS
• 1 x HDMI Type A
• 1 x (3G/HD/SD)-SDI

POWER
• USB Power +4.4V to +5.25V DC • Uses under 2.5 Watts DIMENSIONS 60mm x 73.7mm x 23mm (2.4” x 2.9” x 0.9”)

•  USB provides for power, control and firmware
   upgrades

•  Low power

•  This unit includes a Power Supply and USB Cable
   (HDMI cable not included)

The MD-LX is controlled either via USB on a Mac/Windows app.

Warranty for all Decimator Design products is 3 years.
