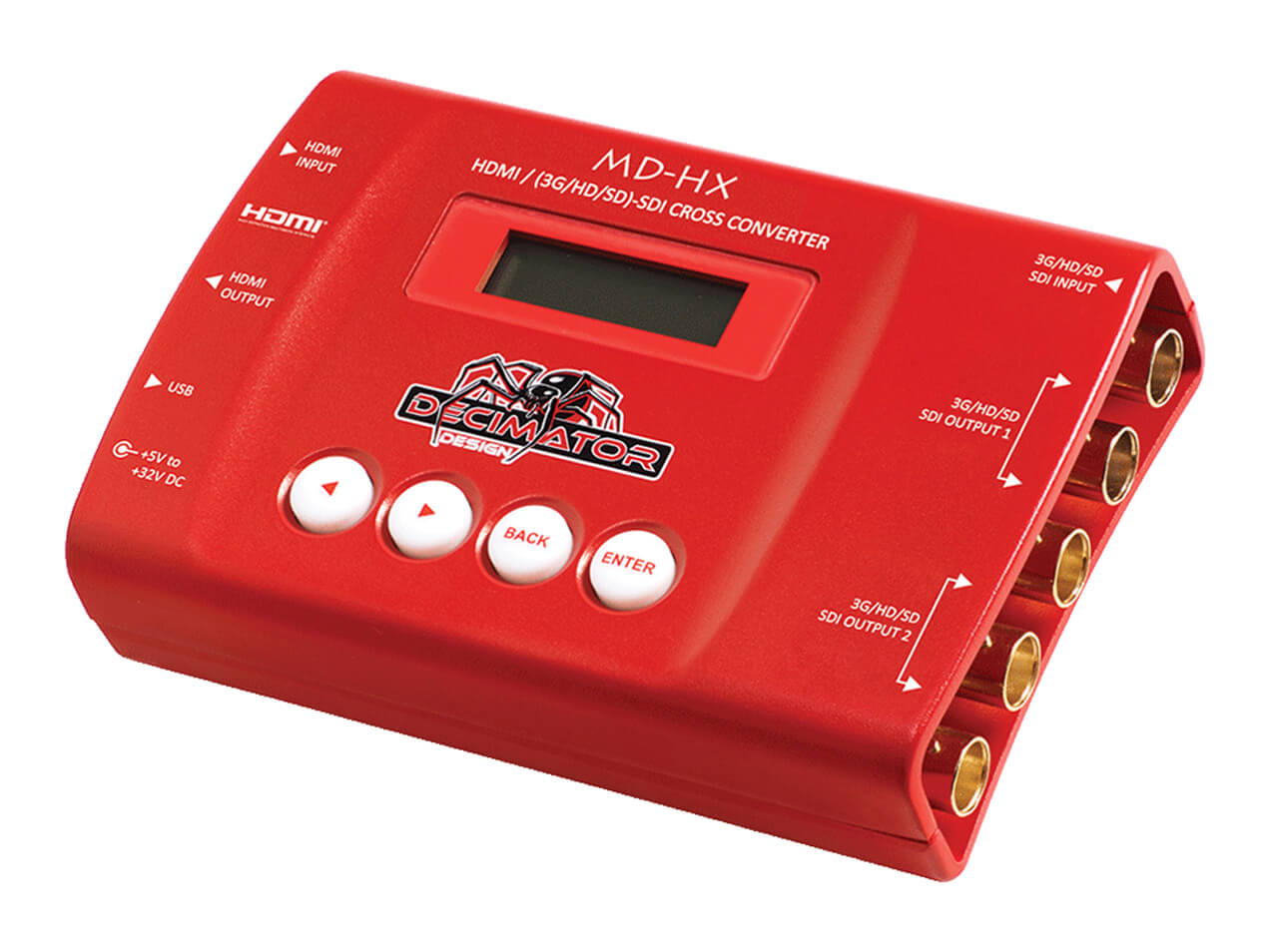

Decimator Design MD-HX

Decimator Design MD-HX

3 490 SEK
HDMI/SDI Cross Converter for 3G/HD/SD
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Finns i lager

Beskrivning

Art.nr: 280-1017

The MD-HX from Decimator Design is their new, miniature and low-cost HDMI/SDI down up cross converter with Scaling and Frame Rate conversion.

  • Combines several converters for the price of one
  • SDI to HDMI, HDMI to SDI, Down Up Cross Converter, 1 to 4 distribution amplifier
  • Simultaneously convert HDMI and/or SDI to HDMI and/or SDI
  • Scale and/or convert Frame Rate on either the HDMI or SDI input
  • Convert between level A + level B 3G-SDI New
  • Horizontal and/or vertical image flipping via build in scaler New
  • Re-arrange audio pairs on SDI & HDMI as required
The MD-HX is controlled either via USB on a Mac/Windows app, or on-unit using the LCD screen and button controls.  The unit comes with a metal thread Locking DC Power Supply, HDMI Cable & USB cable.  Warranty for all Decimator Design products is 3 years.

SDI FORMATS

3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s • 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz • 720p@60/59.94/50/30/29.97/25/24/23.98Hz SD:SMPTE 259M@270Mb/s • 625i50 • 525i59.94



LCD / BUTTON MENU OPTIONS

SDI output source from HDMI IN, SDI IN,

Scaler SDI output 1 is loop • HDMI output type and source from HDMI IN, SDI IN, Scaler • Scaler source, reference, format and Aspect Controls • Audio pair routing for HDMI and SDI output • LCD backlight off time • Back to Status time



INPUTS • 1 x HDMI input • 1 x (3G/HD/SD)-SDI input OUTPUTS • 1 x HDMI • 2 x (3G/HD/SD)-SDI Active Loop-through or addition outputs • 2 x (3G/HD/SD)-SDI outputs



POWER • +5V to +32V DC



Positive Centre Pin DIMENSIONS 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)
