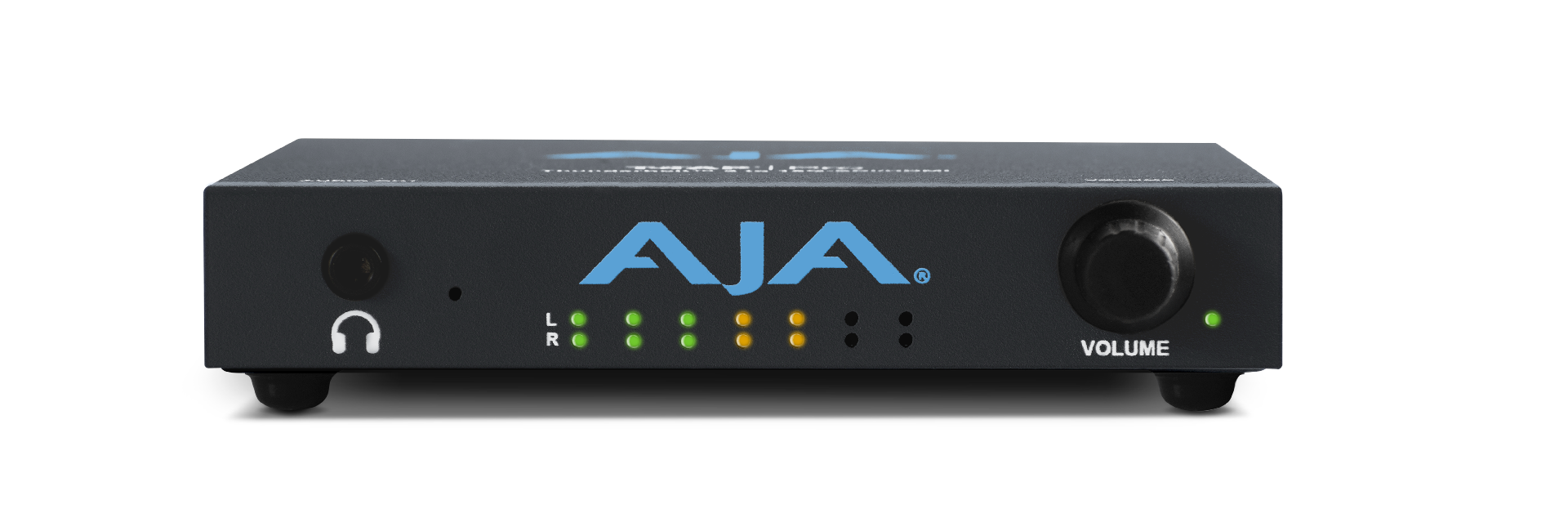

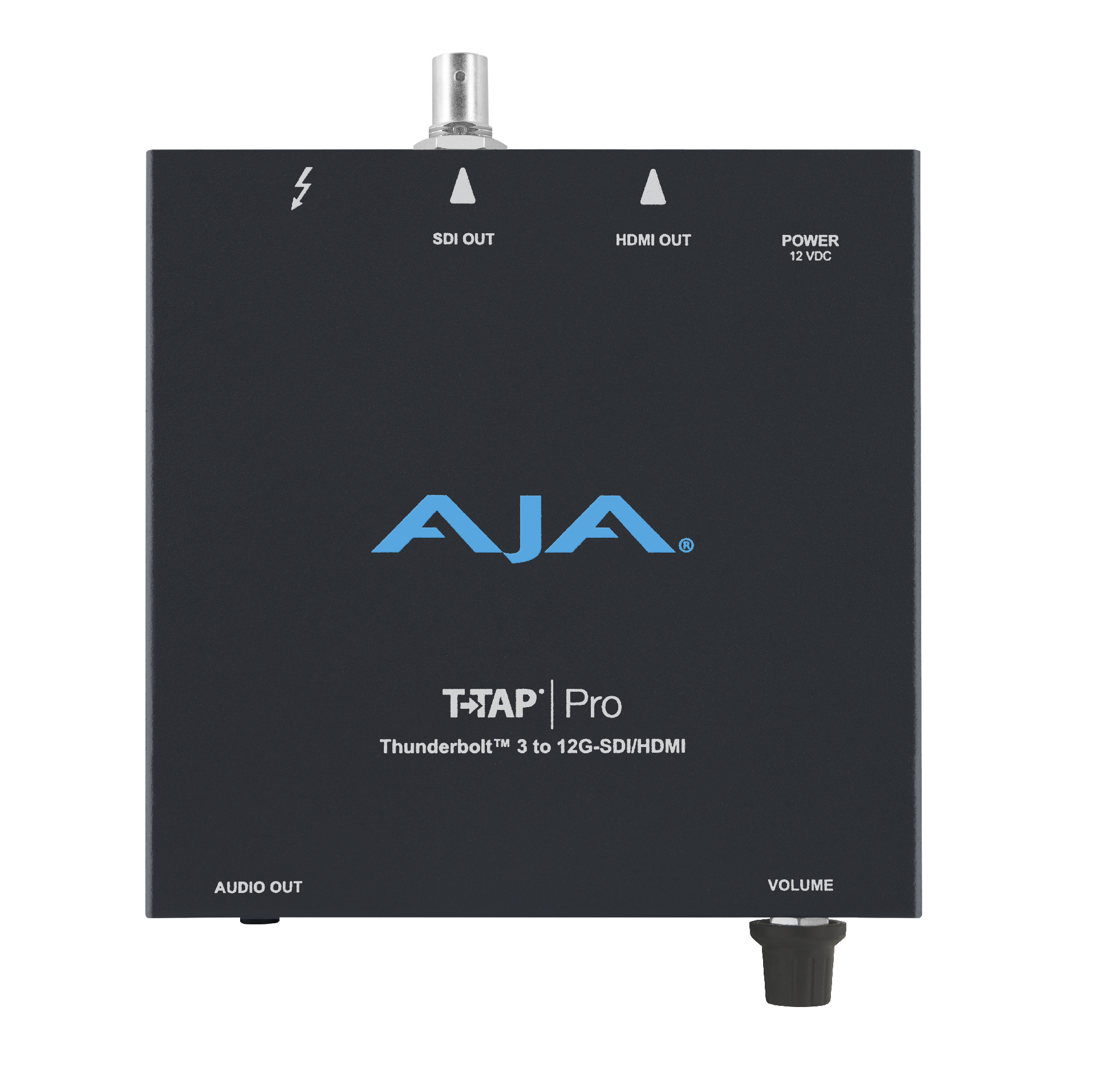

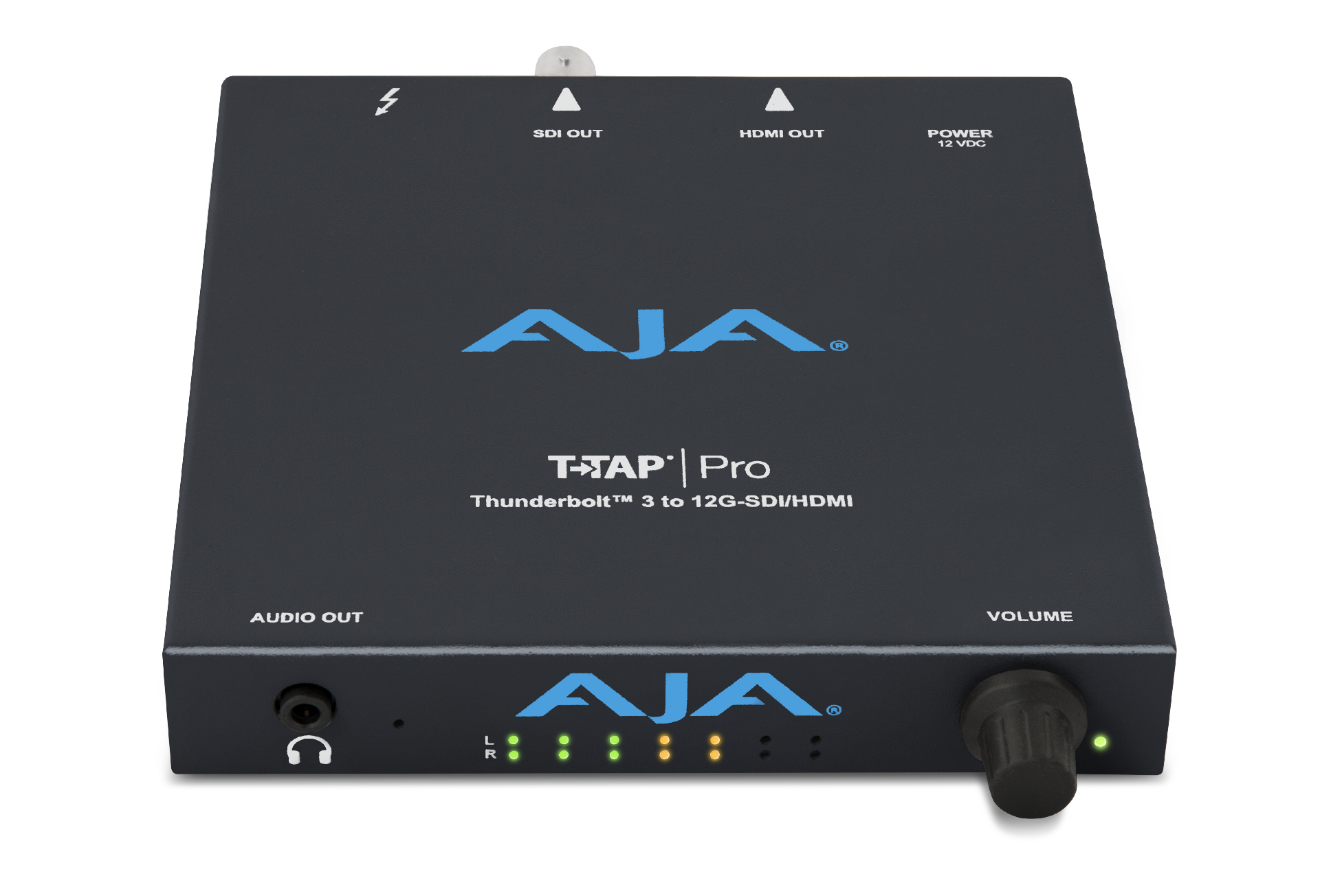

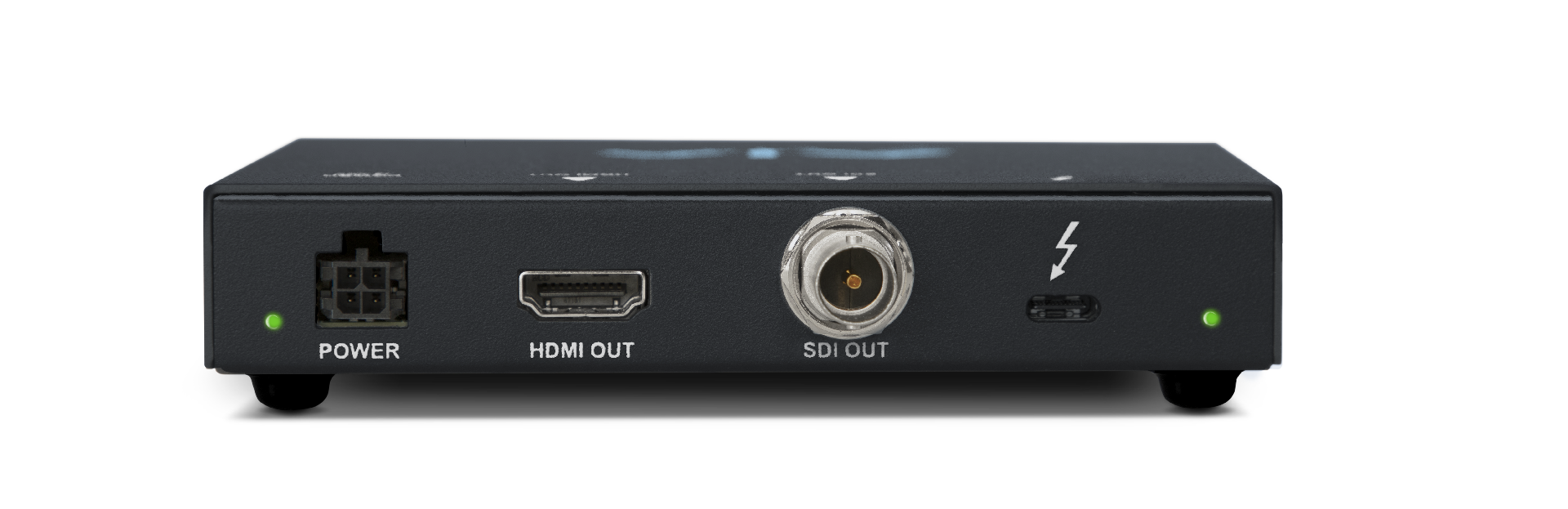

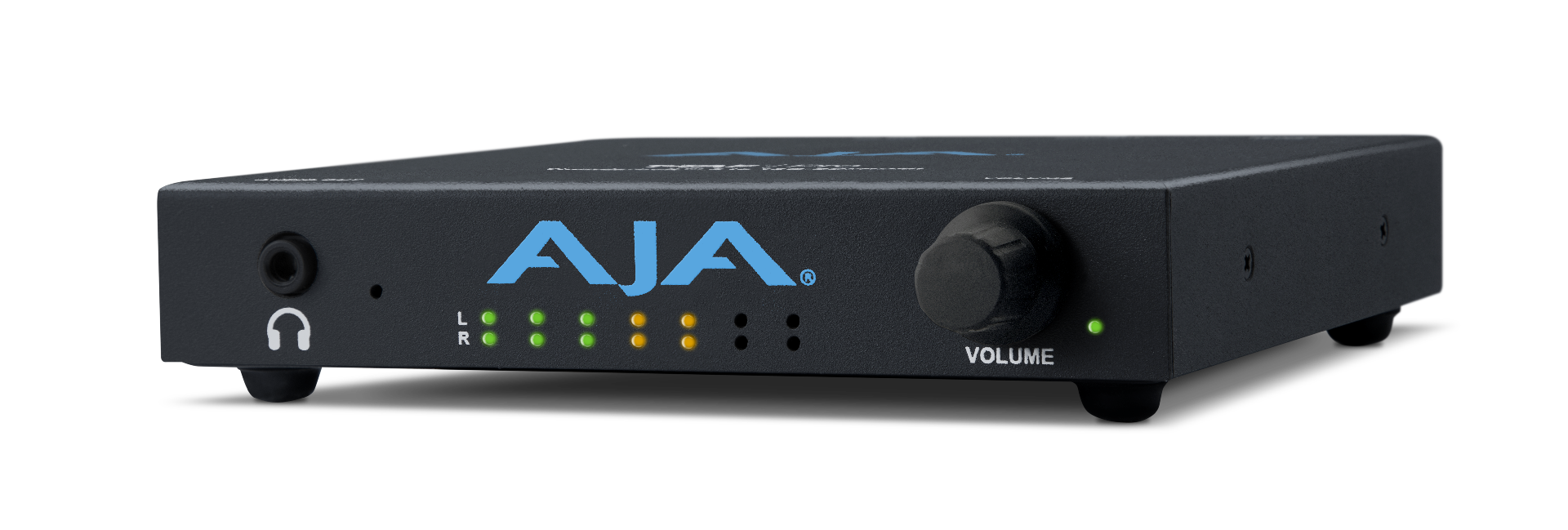

AJA T-TAP PRO 12G-SDI/HDMI v2.0, out 4K/HD w 12/10-bit and HDR

AJA T-TAP PRO 12G-SDI/HDMI v2.0, out 4K/HD w 12/10-bit and HDR

13 250 SEK
T-TAP Pro
Thunderbolt 3 powered 12G-SDI and HDMI v2.0 Output

FINNS SOM OUTLET
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6533

Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94



Note: High Frame Rate and 4K/UltraHD capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes



Video Outputs Digital

  • 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
  • 6G-SDI*, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v2.0
    • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
    • 4K, UltraHD, 2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit



*Bit depth support is application dependent. Check with your software manufacturer for compatibility.



HDR

  • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
  • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
  • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G



Note: HDR support is application dependent. Check with your software manufacturer for compatibility.



Audio Outputs Digital

  • 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous


Audio Outputs Analog

  • 2-channel, 18-bit D/A analog audio, 48 kHz sample rate, unbalanced, using standard 3.5mm jack
  • 1.2V RMS full scale digital output level (0 dBFS)


Size (w x d x h)

  • 5.0" x 1.0" x 5.0" (127.0 x 25.4 x 127.0 mm)


Weight

  • .06 lb (0.23 kg)


Power

  • 18W Max


Environment

  • Safe Operating Temperature: 0 to 35 C (32 to 95 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
