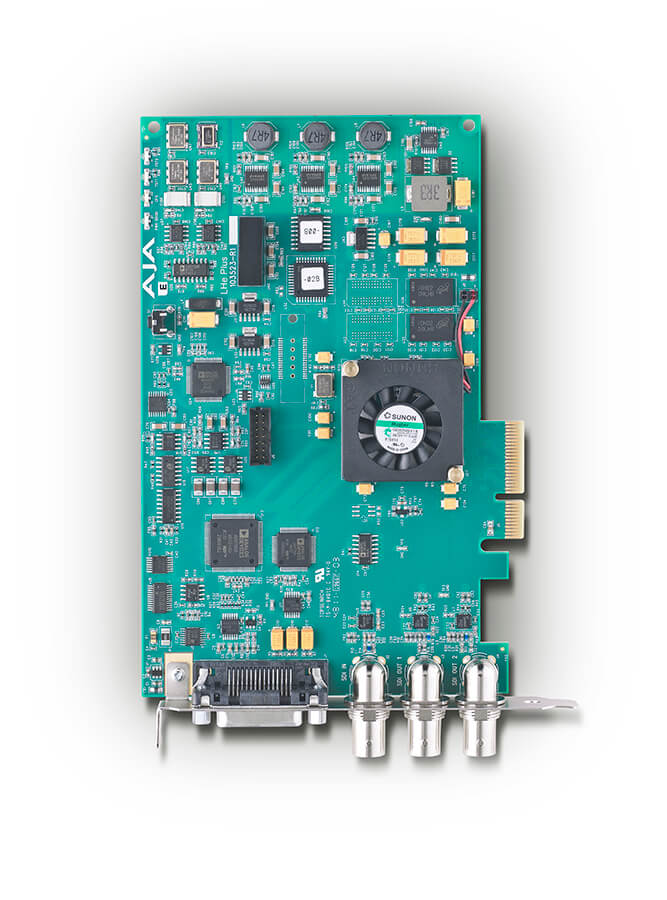

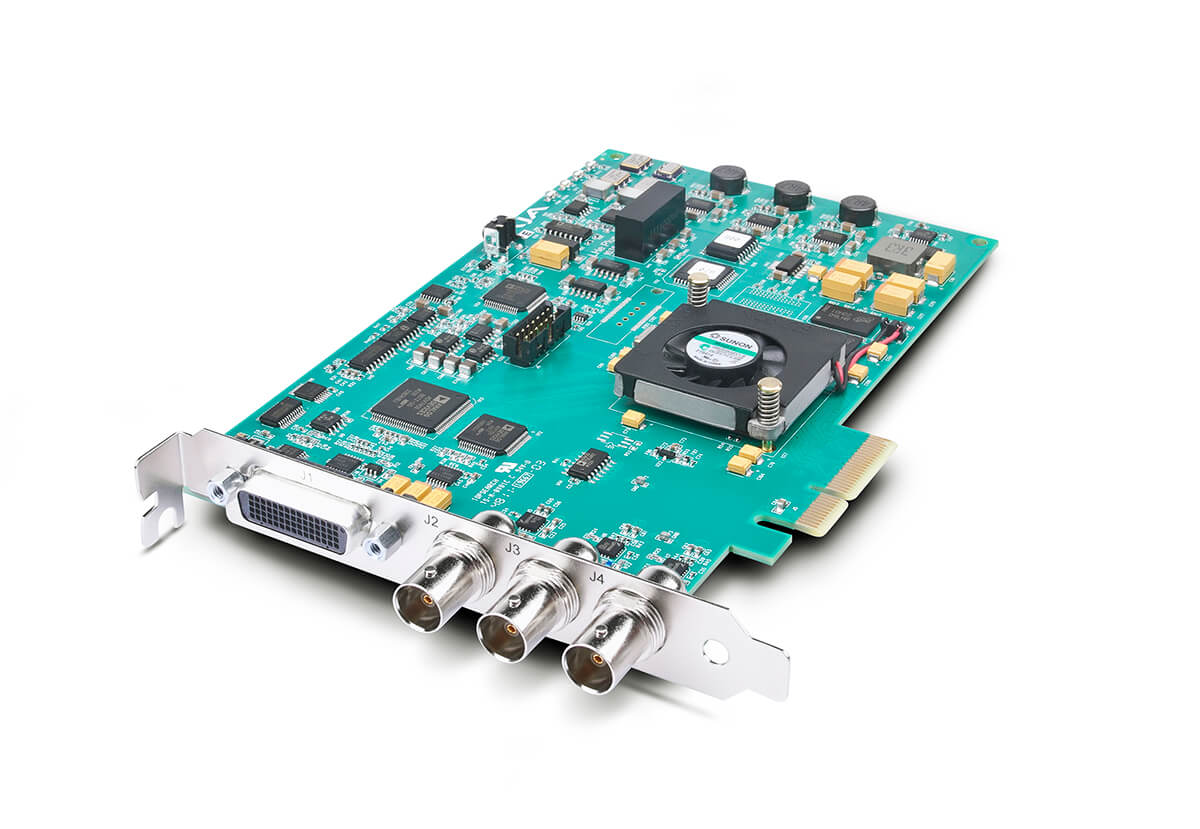

An Affordable Professional Card for Analog and Digital I/O

KONA LHe Plus offers a full host of professional no-compromise features: 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or s-video or SD/HD component video I/O, 2-channel balanced analog audio I/O, and broadcast quality hardware down-conversion from HD to SD.

Mer information om Kona LHe Plus finns här.

Connectivity

For SDI video, the KONA LHe Plus features one input and two outputs and can be configured independently for HD or SD. It offers Genlock input, and three BNCs which may be configured for analog video input and output (HD or SD). Also included is a 9-pin connector for RS-422 machine control. Because the KONA LHe Plus supports analog component HD input and output, devices with analog HD output, such as HDV decks and even game consoles, can be connected for a variety of workflows.

Broadcast-quality conversion

KONA LHe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. Since conversion is hardware-based, it’s available all the time - during ingest or playback.

Extend your Connectivity with KL-Box-LH

The optional KL-Box-LH provides all the standard features of a cable for 1RU rack mounted I/O convenience and added connectivity in the form of additional BNC digital AES/EBU connectors and RCA audio monitoring jacks.
