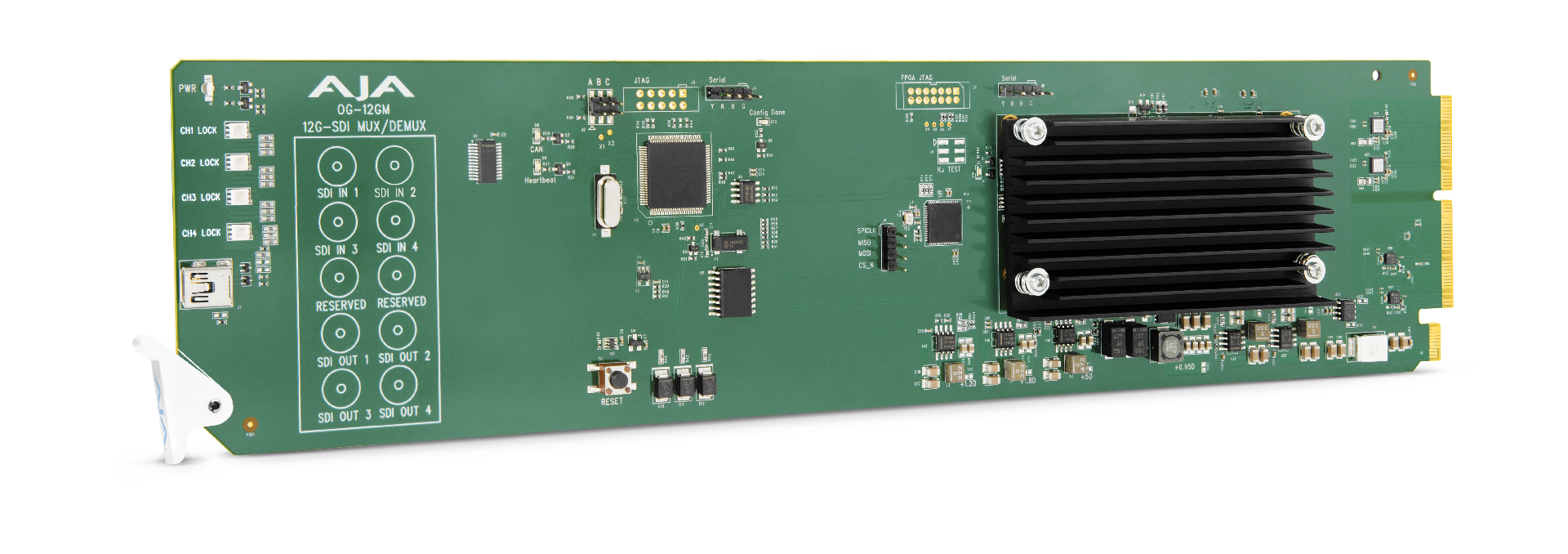

AJA OG-12GM 12G-SDI to/from SDI Muxer/DeMuxer

AJA OG-12GM 12G-SDI to/from SDI Muxer/DeMuxer

14 200 SEK
OG-12GM is a compact SDI transport openGear card that enables 12G-SDI to quad-link 3G-SDI and quad-link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported. AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6343

  • openGear compatible card
  • Single 12G-SDI to/from Quad 3G-SDI Level A
  • Single 12G-SDI to/from Quad 3G-SDI Level B-DL
  • Single 6G-SDI to/from Quad 1.5G-SDI
  • Quad 3G-SDI Level A to/from Quad 3G-SDI Level B-DL
  • Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping, 3G
  • Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
  • Pass through of Single Link 3G-SDI, 1.5G-SDI and 270Mbps SDI video
  • Distribution Amplifier support (1x4)
  • Input signal diagnostics and timing analyzer for quad link signals
  • Automatic or manual control
  • Detailed timing analysis for validating alignment of quad-link SDI inputs
  • Passes SDI embedded audio, 24-bit, up to 16-Channels
  • Recognizes and transmits High Dynamic Range (HDR) and Wide Color Gamut (WCG) signaling on VPID
  • Remote Ethernet configuration through Ross DashBoard software
  • Power: 13 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR and OG-3-FR openGear frames
  • Five year warranty

  • openGear Compatibility

    The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
