AJA OG-12GDA-2x4

AJA OG-12GDA-2x4

10 600 SEK

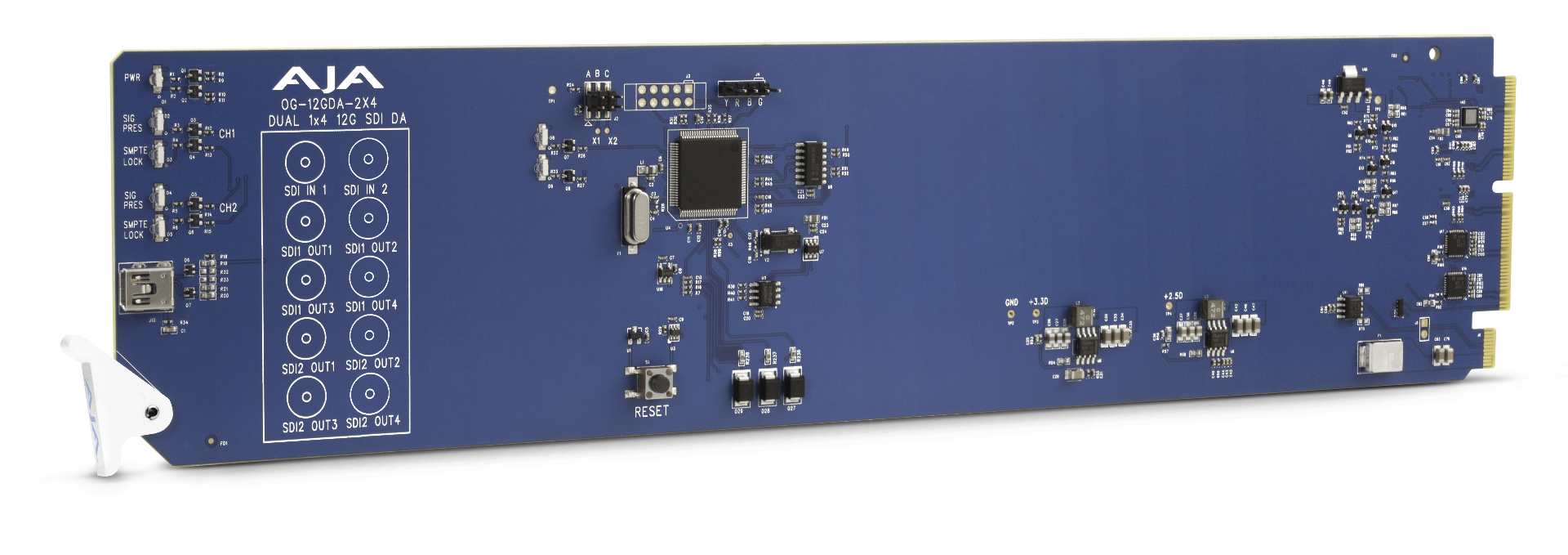

The OG-12GDA-2x4 is an openGear compatible, state of the art 12G-SDI distribution amplifier. The incoming 12G-SDI signals on the dual input channels are automatically equalized and the outputs are automatically reclocked to four 12G-SDI outputs each. This dual input capability allows double the number of DAs in limited frame space. A 10x BNC rear connector module is included. Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6308

  • Dual 1x4 12G-SDI openGear Distribution Amplifiers
  • 2x 12G-SDI BNC inputs
  • 8x noninverting 12G-SDI BNC outputs
  • Format agnostic 270 Mbps – 12 Gbps video formats
  • Automatic input equalization and output reclocking
  • Support for HDR video
  • Passes embedded audio, all ancillary data including closed caption and time code
  • Input Present and Input SMPTE Lock LEDs
  • 10x 12G-BNC rear connector module included
  • Power: 4.5 watts
  • Hot swappable
  • DashBoard Support with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
  • Five year warranty

  • openGear Compatibility

    The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
