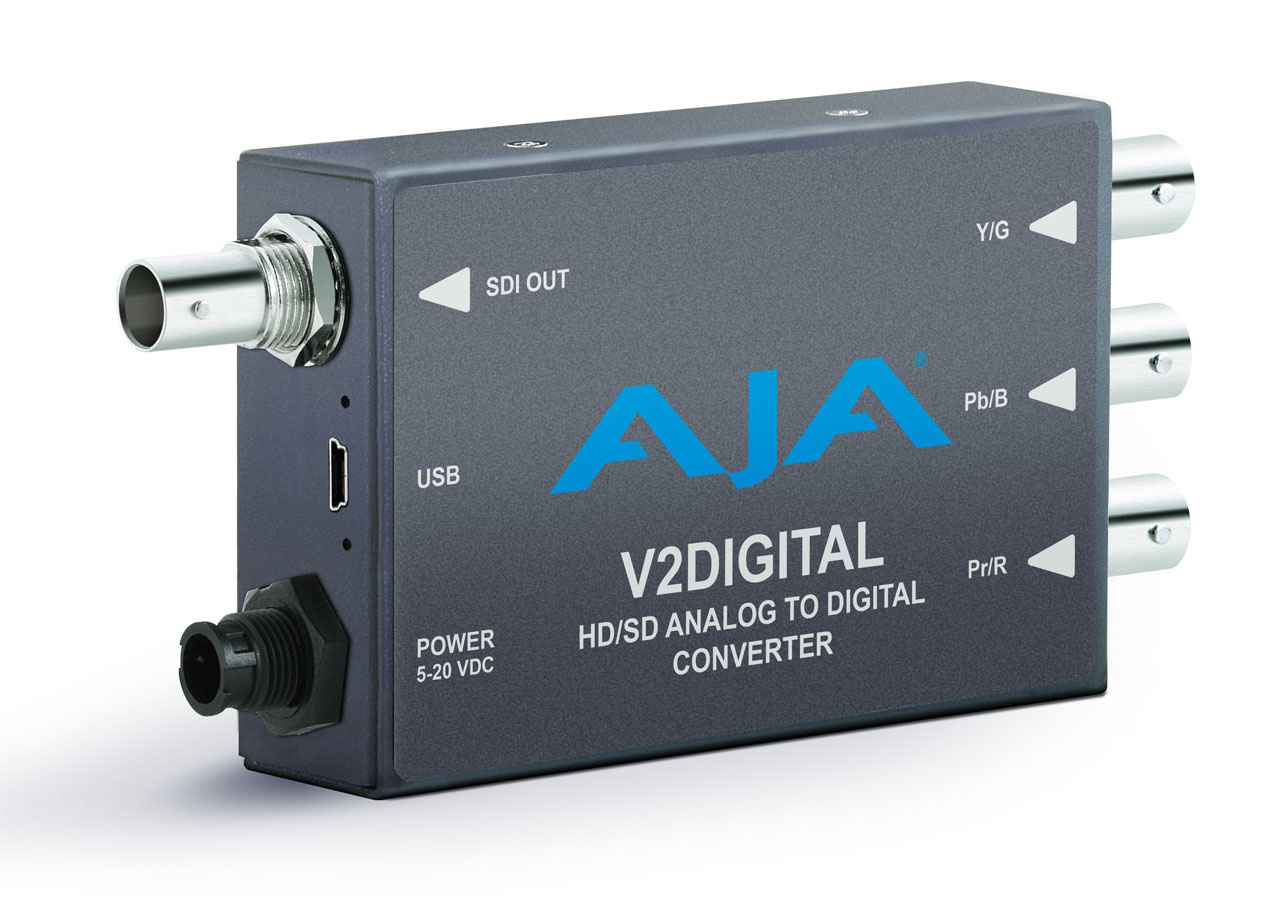

AJA V2Digital

Component/Composite Analog to HD/SD-SDI Mini-Converter

V2Digital provides AJA’s high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions.

The full 10-bit data path and 2x oversampling ensure a quality conversion all at an extraordinary price.V2Digital’s 4-line Adaptive Comb Filter provides high-quality decoding of composite sources. The comb filter can be switched to 2-line or notch modes for minimum delay requirements.

Extensive format support

V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs so no matter what signal comes your way, you’ll be ready to work with it.

Highly portable

V2Digital’s low power consumption and compact size make it perfect for on set use, where it can run off battery power, as well as throughout a facility or AV installation for on-the-spot conversion.

Configure via USB/MiniConfig or external DIP switches

AJA’s free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about input and output formats as well as all configuration parameters.In addition, external DIP switches allow configuration of V2Digital for situations where computer access isn’t practical.

Features

• Low cost, high quality 10-bit Universal A/D Conversion
• YPbPr/RGB Component or Composite input
• HD/SD-SDI output
• 4-line Adaptive Comb Filter
• Full 10-bit Data path, 2x Oversampling
• YPbPr, Betacam, or RGB Component Formats
• NTSC or PAL Composite Formats
• AGC Mode
• Configurable via USB and AJA MiniConfig software for Mac and PC
• Color Bar Generator
• Low power, compact size
• Uses 5-20VDC power(DWP-U-R1 universal power supply included)
• 5-year warranty
