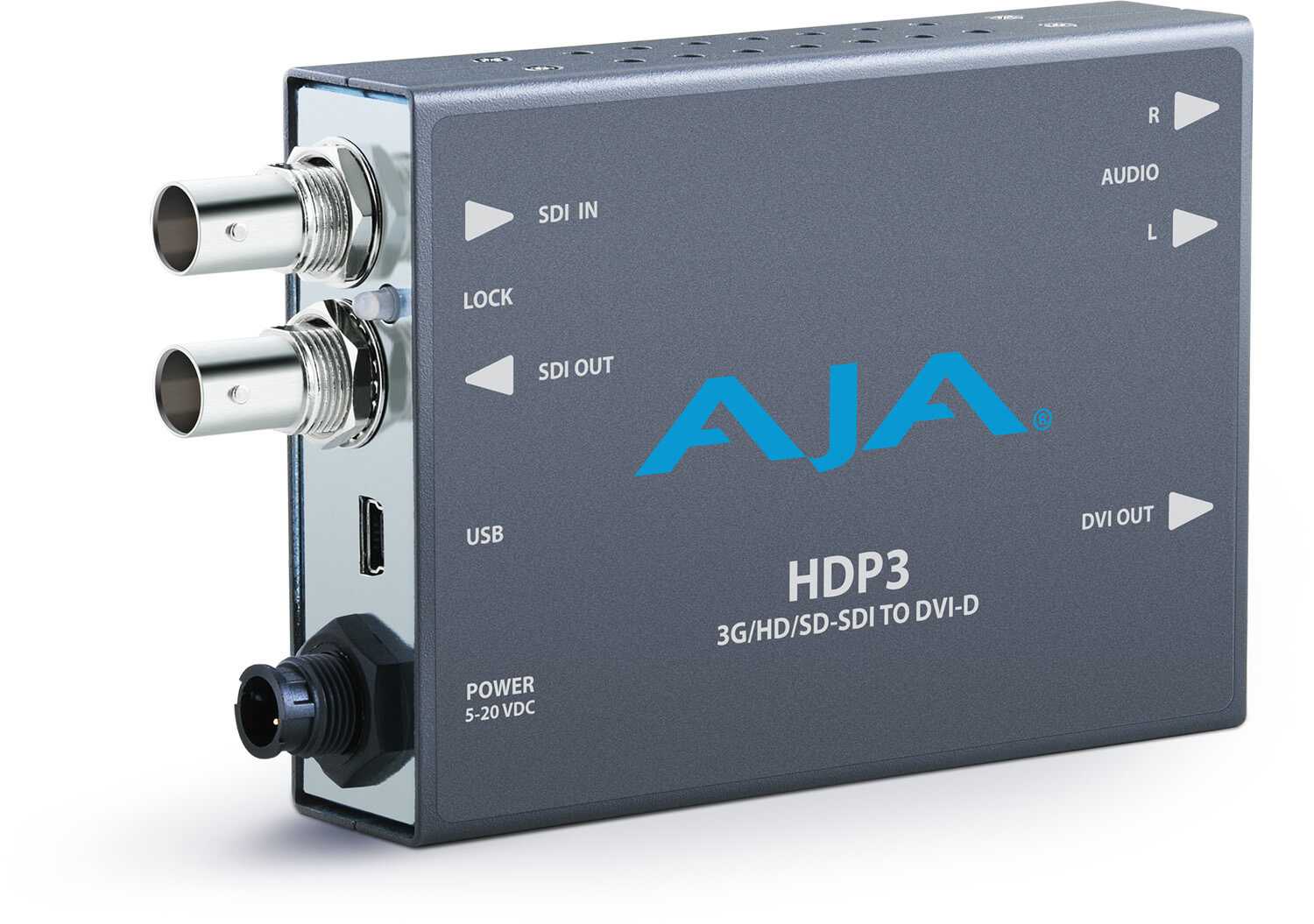

AJA HDP3: 3G-SDI to DVI-D
10 460 SEK
3G-SDI to DVI-D mini-converter for digital display devices such as LCD, DLP, and Plasma monitors or projectors.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 132-6109
The HDP3 is a 3G-SDI to DVI-D mini-converter for digital display devices such as LCD, DLP, and Plasma monitors or projectors.
Using AJA’s very high quality scaling engine and deinterlacer, the HDP3 handles 3G-SDI signals up to 1080p60. The HDP3 will adapt the input frame rate for monitor compatibility, and because it responds to EDID from monitor or projector, it can automatically determine the best output format and scaling parameters. 1 to 1 pixel mapping can can also be selected.
The HDP3 provides user- assignable 2-Channel analog audio monitoring , 2 to 8-Channel 24-bit embedded audio (via DVI-D to HDMI adapter only), plus a looping output of the SDI input retaining 8-Channels of embedded audio.
Tech Specs:
Video Input Formats
1 x 3 Gb SDI (Level A)
• (HD) 1920 x 1080p 50, 59.94, 60
1 x 1.5 Gb SDI
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60
1 x 270 Mb SDI
• (SD) 625i 25
• (SD) 525i 29.97
Video Input Digital
• 1 x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
• 1 x DVI Type D female connector
• Automatically adapts to popular LCD/DLP/Plasma monitors (and projectors) up to 1920 x 1200 and 1080p
• High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
• 1 to 1 scaling for appropriate monitor configurations
