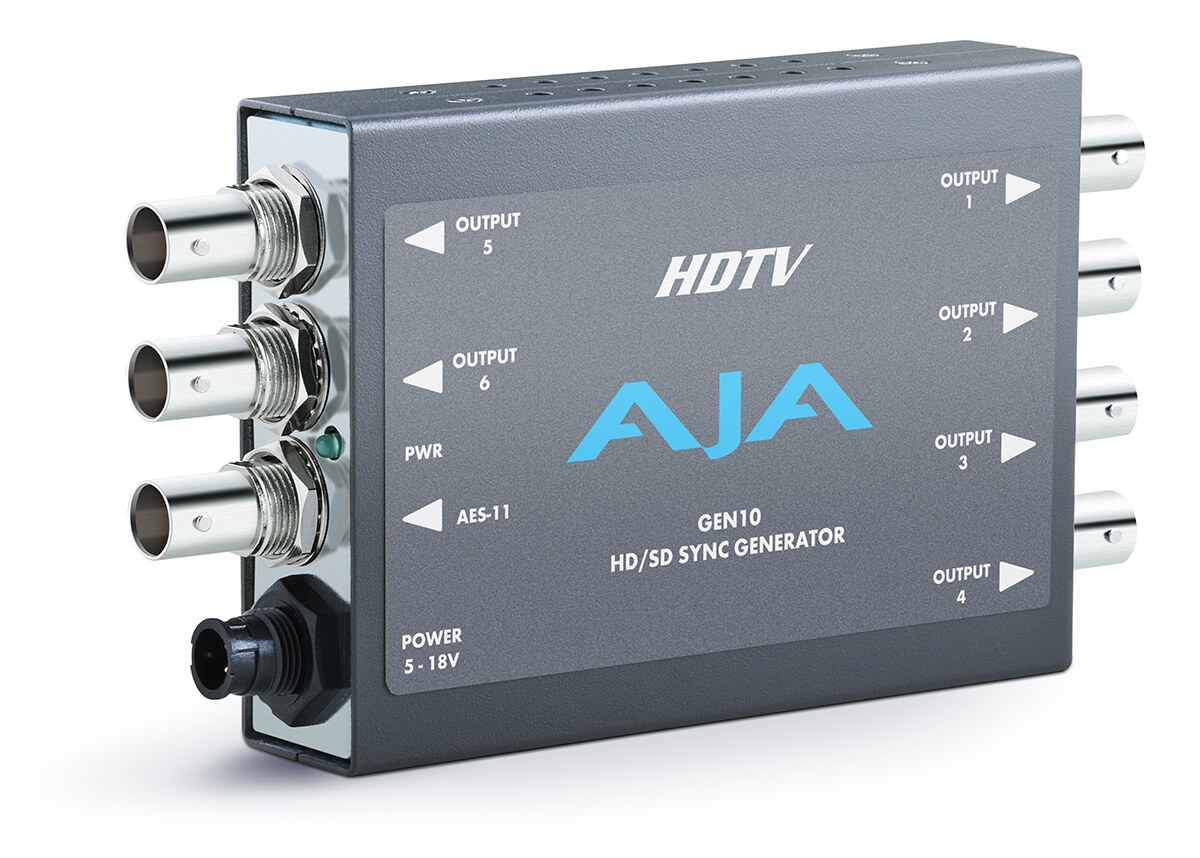

AJA GEN10: HD/SD Sync Generator

AJA GEN10: HD/SD Sync Generator

5 170 SEK
GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-l
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Finns i lager

Beskrivning

Art.nr: 132-1750

GEN10

HD/SD Sync Generator

The GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.

Features

  • HD Tri-level sync generation
  • SD Color Black or Color Bars
  • Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
  • AES-11 output switchable between silence and tone
  • Multiple outputs can synchronize entire systems without requiring a Sync DA
  • 5-18VDC Power
  • External dip switch configuration
