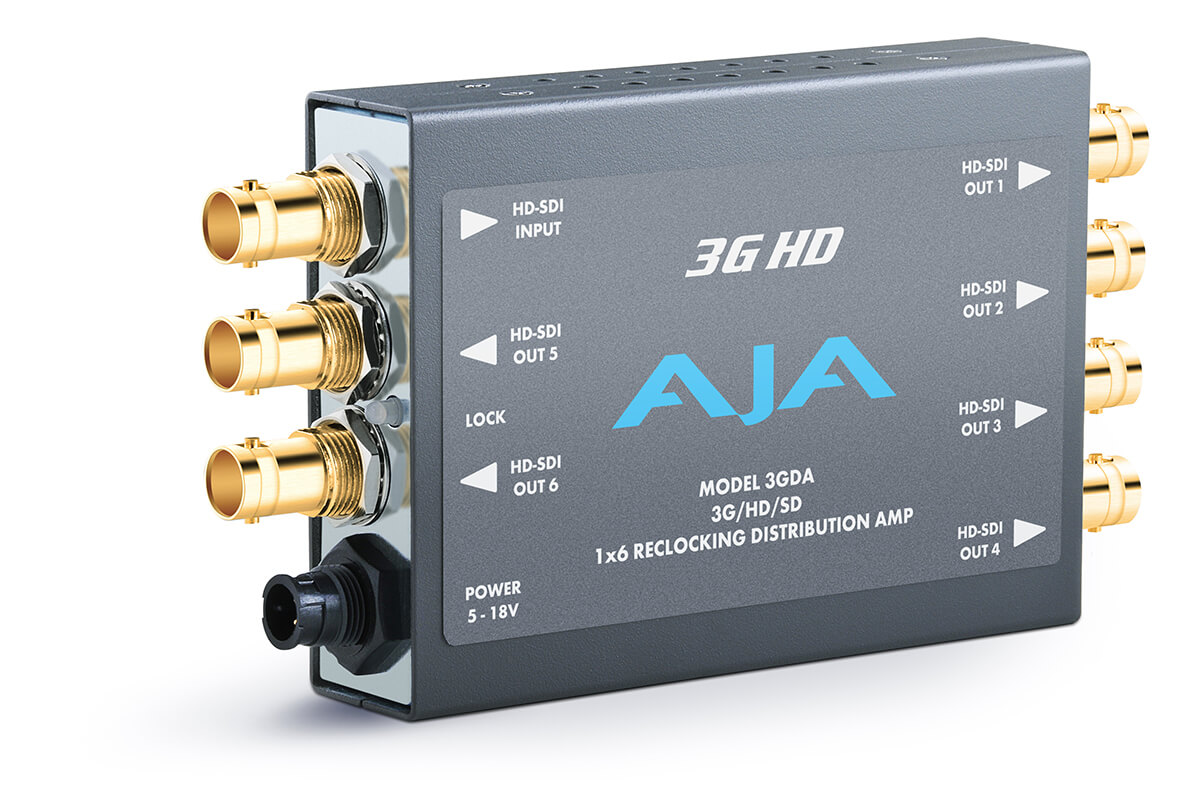

AJA 3GDA: 1x6 3G/HD/SD Reclocking Distribution Amplifier
5 890 SEK
1x6 3G/HD/SD Reclocking Distribution Amplifier
- Betala säkert med kort
Leverans: Finns i lager
Beskrivning
Art.nr: 132-1565
1x6 3G/HD/SD Reclocking Distribution Amplifier
The 3GDA is a miniature, low-cost 1x6 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, re-clocking and cable equalization.
Inputs
Outputs
Cable Equalization
Input/Output Return Loss
Power
Size
5.8" x 3.1 x 1" (131 x 79 x 25mm)
The 3GDA is a miniature, low-cost 1x6 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, re-clocking and cable equalization.
Specifications
Formats| 3Gb, 1.5Gb, 270Mb Auto Select |
Inputs
| 1 HD-SDI, SDI (SMPTE 259/292/296/424), 1x BNC |
Outputs
| 3G HD-SDI, HD-SDI, SDI, 6x BNC |
| Equalizing and re-clocking |
Cable Equalization
| 270mb, 350m |
| 1.5Gb, 200m |
| 3Gb, 120m |
| Cable Equalization (1694 coax) |
Input/Output Return Loss
| >15db, 270Mb - 3Gb |
Power
| +5-18VDC, Regulated, 3 watts |
Size
5.8" x 3.1 x 1" (131 x 79 x 25mm)
