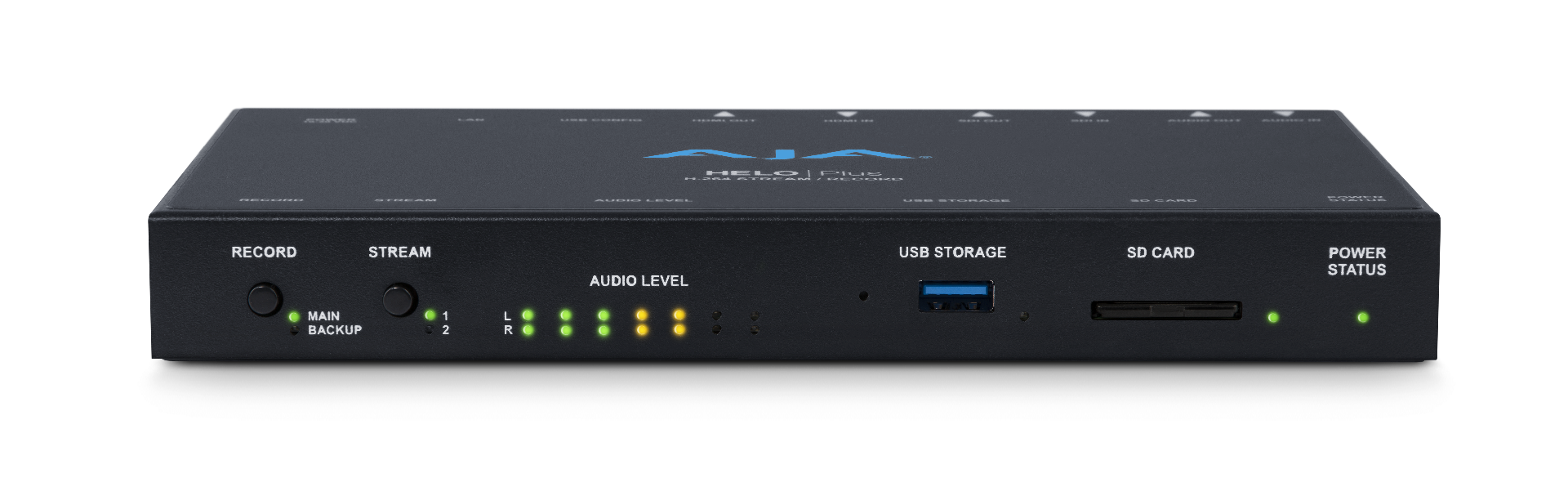

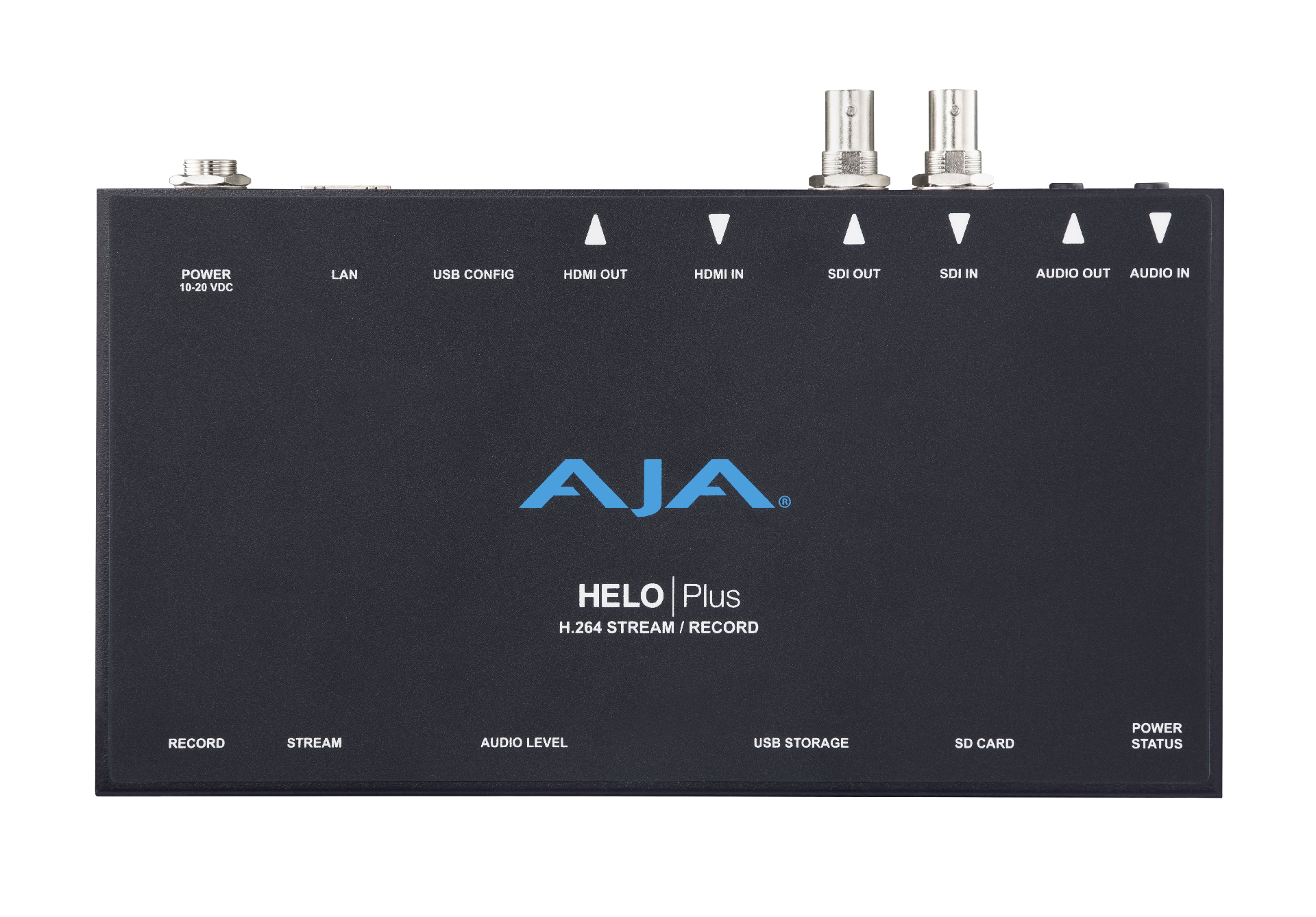

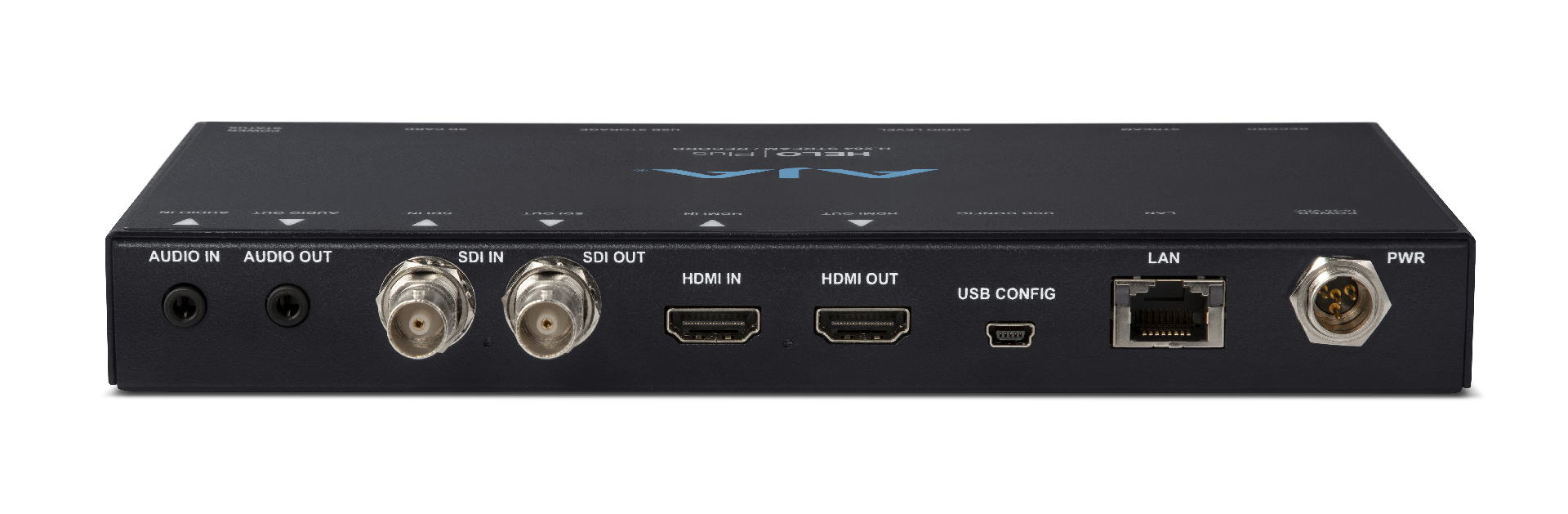

AJA HELO Plus
22 010 SEK
HELO Plus is a compact, advanced H.264 streaming and recording stand-alone appliance. HELO Plus offers both SDI and HDMI I/O with the capability to stream up to 1080p60 to a Content Delivery Network and record simultaneously. Two separate streaming destinations can be set up and recordings can be made to a combination of SD card, USB storage and NFS or CIFS network storage. HELO Plus also provides Picture-In-Picture and graphics functionality in hardware for compelling presentations made simple.
HELO Plus offers high quality streaming with ultra-reliable performance for any critical streaming service needs, including eSports, news, sports, education, creator, live events, and beyond.
- Betala säkert med kort
Maila för leveranstid
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 132-6554
HELO Plus
Video Formats
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 525i, 625i
Video Codec Support
- H.264/MPEG-4 Encoder
Video Encoding Parameters
- 100 kbps to 20 Mbps streamed output (Independent settings for encoding and packaging parameters for each stream output)
- 100 kbps to 20 Mbps recorded output
- Up to 1080p 60
- Supports Baseline, Main, and High Profiles
Audio Encoding Parameters
- 32 kbps to 256 kbps
- 48 kHz 2-channel stereo
- MPEG-4 AAC-LC
Protocols
- RTMP, RTMPS, RTSP, HLS RTP-TS/UDP-TS Unicast and Multi Unicast, SRT (caller mode). RTSP and HLS client sessions combined limited to a total of 10. RTSP limited to a single session.
Storage
- 1x USB port (USB 2.0 and USB 3.0 media, exFAT or FAT32)
- 1x SD card slot, SD, SDHC, and SDXC cards (exFAT)
- Mounted Network Share (CIFS or NFS)
Video Input Digital
- 1x 3G-SDI, SMPTE-259/292/296/424, 10-bit
- Single Link 4:2:2, 4:4:4 (1x BNC)
- 1x HDMI Standard Type A connector
- HDMI v1.4a, RGB or YCbCr
Video Output Digital
- 1x 3G-SDI, SMPTE-292/296/424, 10-bit
- Single Link 4:2:2 or 4:4:4 (1x BNC)
- 1x HDMI Standard Type A connector
- HDMI v1.4a, RGB or YCbCr
Audio Input Digital
- 2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
- 2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Input Analog
- 2-channel, Analog (-10dBV Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
Audio Output Digital
- 2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
- 2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
Audio Output Analog
- 2-channel, Analog (Line Level, Unbalanced stereo 1x 3.5mm TRS connector)
Network Interface
- 10/100/1000 Ethernet (RJ-45)
- Embedded web server for Configuration and Control
- Regionalized interface support - Simplified Chinese, Korean, Japanese
User Interface
- Stream Button
- Record Button
- Web UI
- Simple Web Configuration via AJA eMini-Setup (macOS and Windows)
- Integrated calendar
Control and Automation
- Integrated calendar scheduler
- Support remote ICS calendars
- Scriptable REST control API
- Closed Captioning supported
Size (w x d x h)
- 8.50" x 5.5" x 1.02" (215.9 x 139.7 x 25.91 mm)
Weight
- 1.0 lb (0.46 kg)
Power
- External power supply required
- Enclosure: 12Vdc 4-pin mini XLR
- AC adapter included: 100-240 VAC 50/60 Hz, universal input, 12V– 60W Max
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
