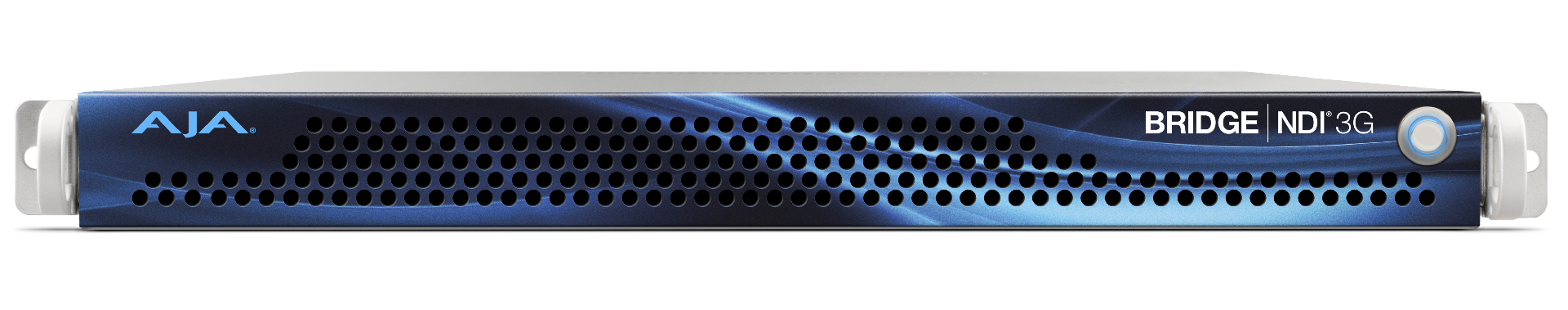

AJA BRIDGE NDI 3G
5 300 SEK
BRIDGE NDI 3G is a 1RU gateway offering high density conversion from 3G-SDI to NDI and NDI to 3G-SDI for both multi-channel HD and 4K/UltraHD. Designed to drop into any existing NDI or SDI workflow as a plug-and-play appliance, it's easy to deploy and administer.
BRIDGE NDI 3G brings immense conversion power and flexibility, fully controllable remotely for AV use, security and surveillance, broadcast, eSports, entertainment venues, and a wide range of other facilities needing high quality, efficient NDI encode and decode. Set and forget, or use more dynamically as project needs dictate.
BRIDGE NDI 3G brings immense conversion power and flexibility, fully controllable remotely for AV use, security and surveillance, broadcast, eSports, entertainment venues, and a wide range of other facilities needing high quality, efficient NDI encode and decode. Set and forget, or use more dynamically as project needs dictate.
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 132-6558
Video Formats
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
Video Codecs
- NDI
- NDI HX (input only)
Audio Streams/Codecs
- NDI (uncompressed float)
- SDI (PCM)
Color Component Sampling, Color Space, and Bit Depth
- SDI
- YCbCr, 4:2:2, 10-bit
- NDI
- UYVY, 4:2:2, 8-bit
- UYVA, 4:2:2, 8-bit
- P216, 4:2:2, 16-bit (output only)
Video Processing
- Scaling
- Letterbox/Pillarbox
- Video/Key Pair (2x SDI to 1x NDI + Alpha, or, 1x NDI + Alpha to 2x SDI)
- Reclocking for integer/fractional rate conversion
Audio Processing
- Audio reference level per video channel / group (up to 16 audio channels)
- Sample Rate conversion
Performance
- Up to 16x HD (NDI/SDI)
- Up to 4x 4K (NDI/SDI)
- Ultimate performance based on network conditions, concurrent video processing, and other parameters
NDI Video Input
- NDI (approx. 150–250Mbit/s)
- NDI HX (approx. 8-20Mbit/s)
NDI Video Output
- NDI (approx. 150–250Mbit/s)
SDI Video Input Digital
- 3G-SDI, SMPTE 424, 10-bit
- 1.5G-SDI, SMPTE 292M, 10-bit
SDI Video Output Digital
- 3G-SDI, SMPTE 424, 10-bit
- 1.5G-SDI, SMPTE 292M, 10-bit
NDI Audio Input
- Up to 16-channel, uncompressed float, 48 kHz sample rate, per NDI connection
NDI Audio Output
- Up to 16-channel, uncompressed float, 48 kHz sample rate, per NDI connection
SDI Audio Input Digital
- Up to 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
SDI Audio Output Digital
- Up to 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Reference
- Dual Analog Color Black or HD Tri-level sync
Timecode
- VITC1, VITC2, LTC (embedded), Time-of-Day
Configuration and Monitoring
- NDI 5 or NDI 4 library can be used via interface toggle
- Browser via network attached client system

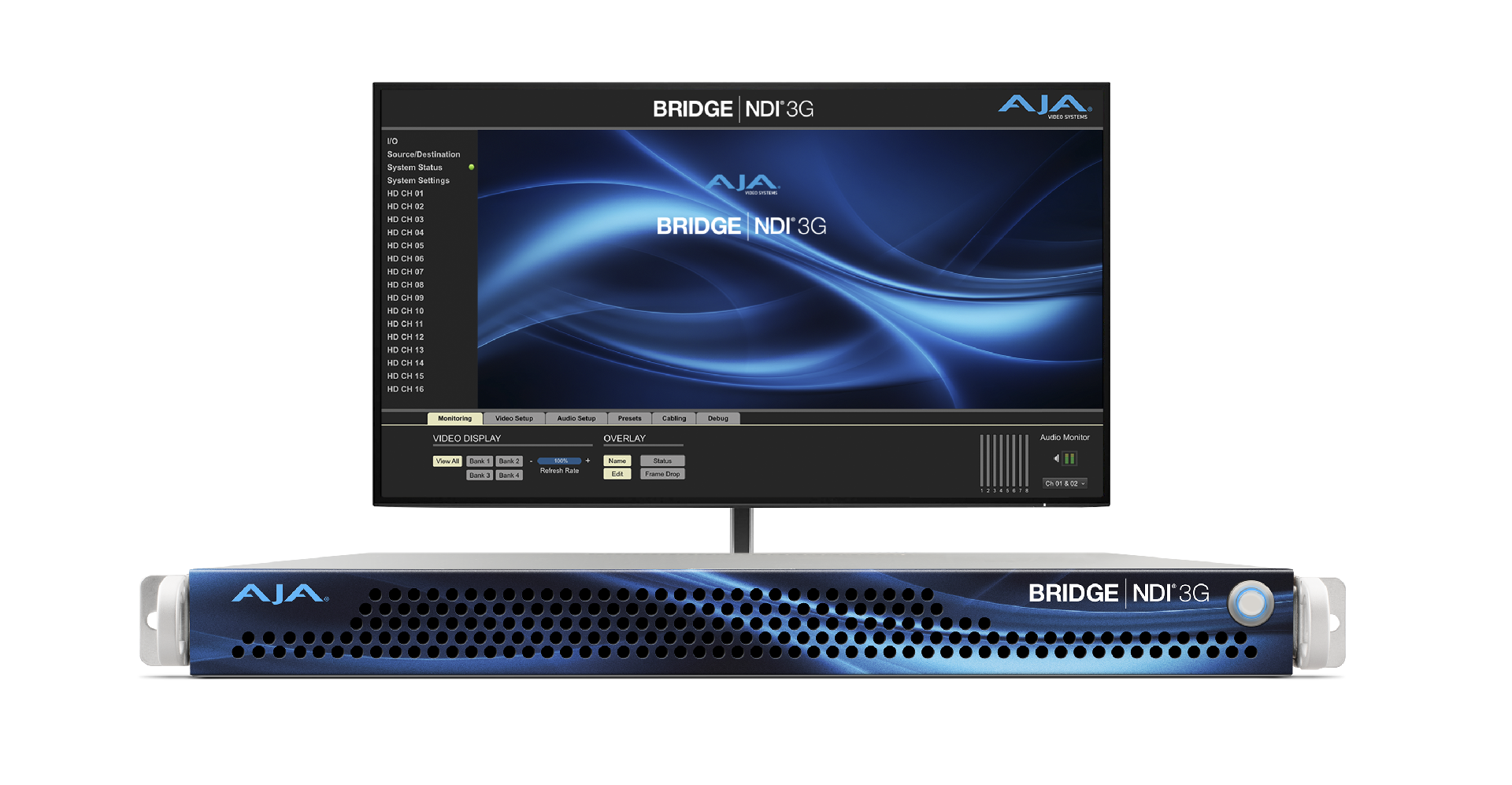

- Local “Kiosk” interface via monitor (VGA), keyboard, and mouse (not included)
- Local Dual Channel Audio via USB sound card (included)
- REST API

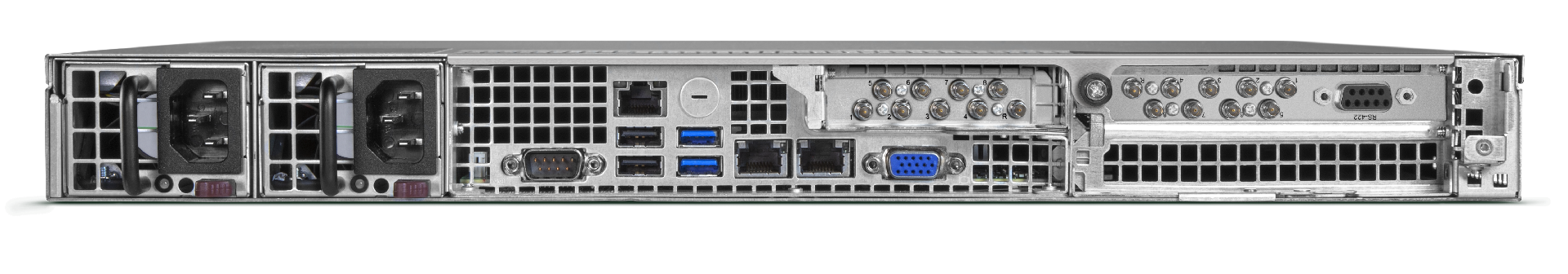

Form Factor
- 1RU turnkey system
- 18x BNC (Din 1.0/2.3, 3G/1.5G-SDI compatible)
- 2x 10GigE
- Local interface via VGA and USB
- OS custom image
- Updates via download
Size (w x d x h)
- 17.2” x 16.9" x 1.7" (436.88 x 429.26 x 43.18 mm)
Weight
- 28 lb. (12.7kg) in box
- 18 lb. (8.2kg) server only
Power
- 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
- 190W typical, 245W Maximum
Environment
- Safe Operating Temperature: 5 to 35 C (41 to 95 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 8-90% noncondensing
- Nonoperating Relative Humidity: 5-95% noncondensing
