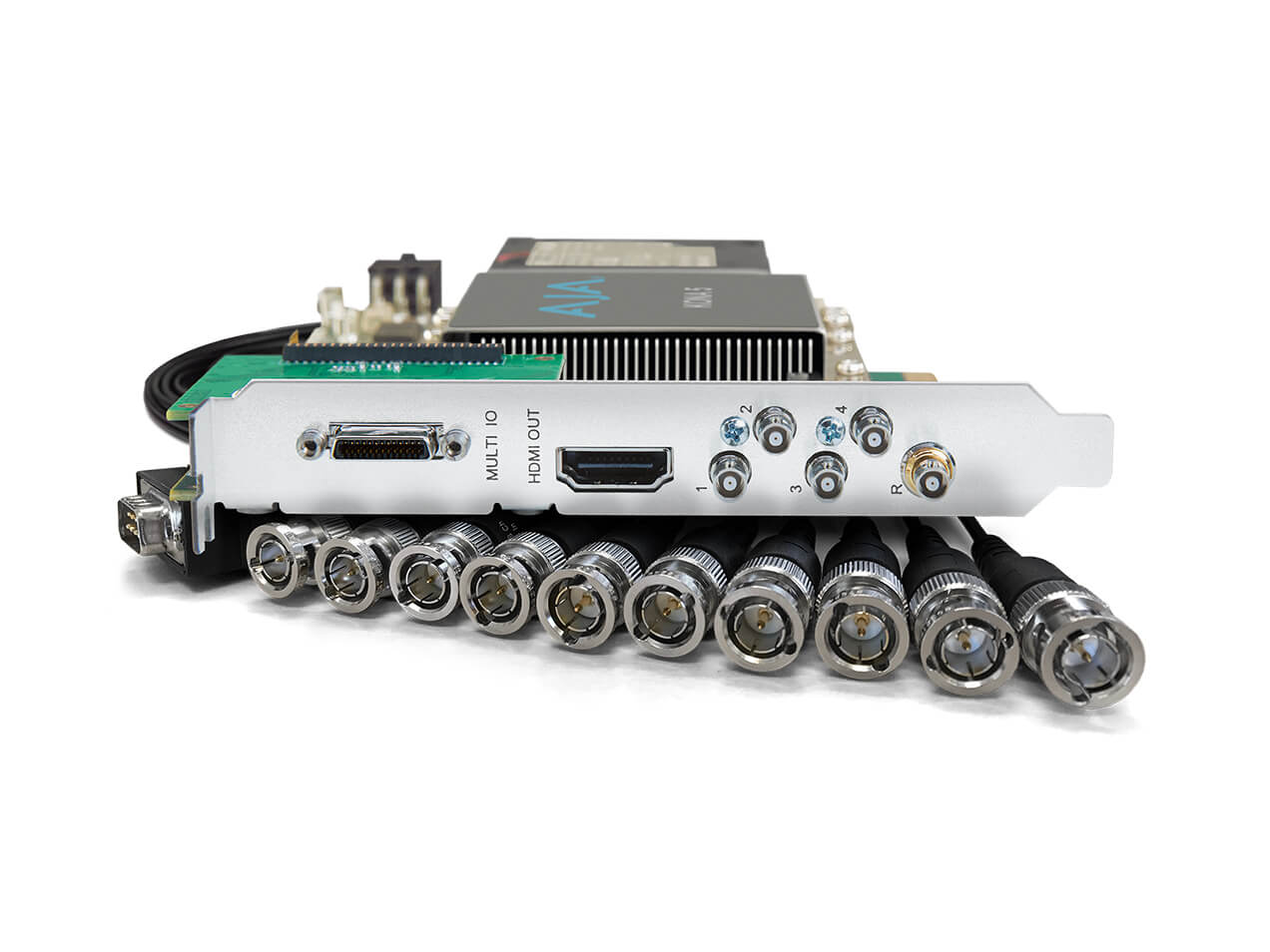

AJA KONA 5: 12G-SDI Capture Card

AJA KONA 5: 12G-SDI Capture Card

43 780 SEK
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6219



Take command of the most challenging projects using the immense power of the newest member of the KONA product line. KONA 5 is AJA’s blazingly fast, 8-lane PCIe 3.0 I/O card, designed for today’s most demanding video and audio workflows.
Whether you are working with HFR 4K/UltraHD, 2K/HD, SD, Deep Color and/or HDR, experience the quality and peace of mind that KONA 5 brings to your world. Supporting 10-bit 4:2:2 and 4:4:4, or even 12-bit* color spaces for pristine imagery, KONA 5 allows the flexibility to ingest and output with 12G/6G/3G-SDI and monitor with a full size HDMI 2.0 port. The bi-directional 12G-SDI ports provide immense flexibility for capture and simultaneous pass through, and with the appropriate software, multi-channel capture and streaming.

For HDR workflows, KONA 5 supports HDR 10 and HLG* for rich color delivery over HDMI 2.0. KONA 5 has the power for the work you do today and into the future.

*Application dependent

Features

  • Supports 4K and UltraHD ingest and output at frame rates up to 50/60 fps
  • Supports 4:4:4 and 4:2:2 workflows
  • 10-bit 4K/UltraHD and 2K/Dual Link/HD/SD input and output
  • 12-bit color support (application dependent)
  • HDMI 2.0 output (4K/UltraHD HFR 4:2:2 10-bit)
  • HDR 10 support - HDR Infoframe metadata, in accordance with
    HDMI 2.0a/CTA-861.3
  • HLG (Hybrid Log Gamma) support
  • 8-Ch. AES/EBU, 8-Ch. embedded HDMI, and 16-Ch. embedded SDI digital audio I/O
  • Reference Input on card (Analog black burst or Tri-level)
  • Extend external connectivity with included break-out-cable
  • RS-422 support on 9-pin connector
  • macOS, Windows and Linux support


Professional Connectivity:
12G-SDI and HDMI 2.0

KONA 5 boasts 4x bi-directional 12G-SDI spigots with a Reference Input and 4K/UltraHD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable, or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single 3G-SDI cable, or dual link 1.5G-SDI, while allowing capture and monitoring via SDI to take place simultaneously.

A full-sized HDMI 2.0 connection offers monitoring and output, with HDR , Deep Color and HFR support. Across the board, KONA 5 is the professionals choice for post, broadcast, graphics, virtual sets, pre-viz, live compositing and more.

Extended Connectivity

KONA 5 ships with an included breakout cable that offers extensive connectivity for AES, RS-422 control support and Reference:

  • 8-Channels of AES/EBU (BNC) In
  • 8-Channels of AES/EBU (BNC) Out
  • RS-422 9-pin connector for control
  • LTC In and Out

HDR

HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

KONA 5 delivers robust HDR compatibility to HDMI displays with support for HLG and HDR 10 with HDR Infoframe metadata, in accordance with HDMI2.0a/CTA-861.3 and HD.
