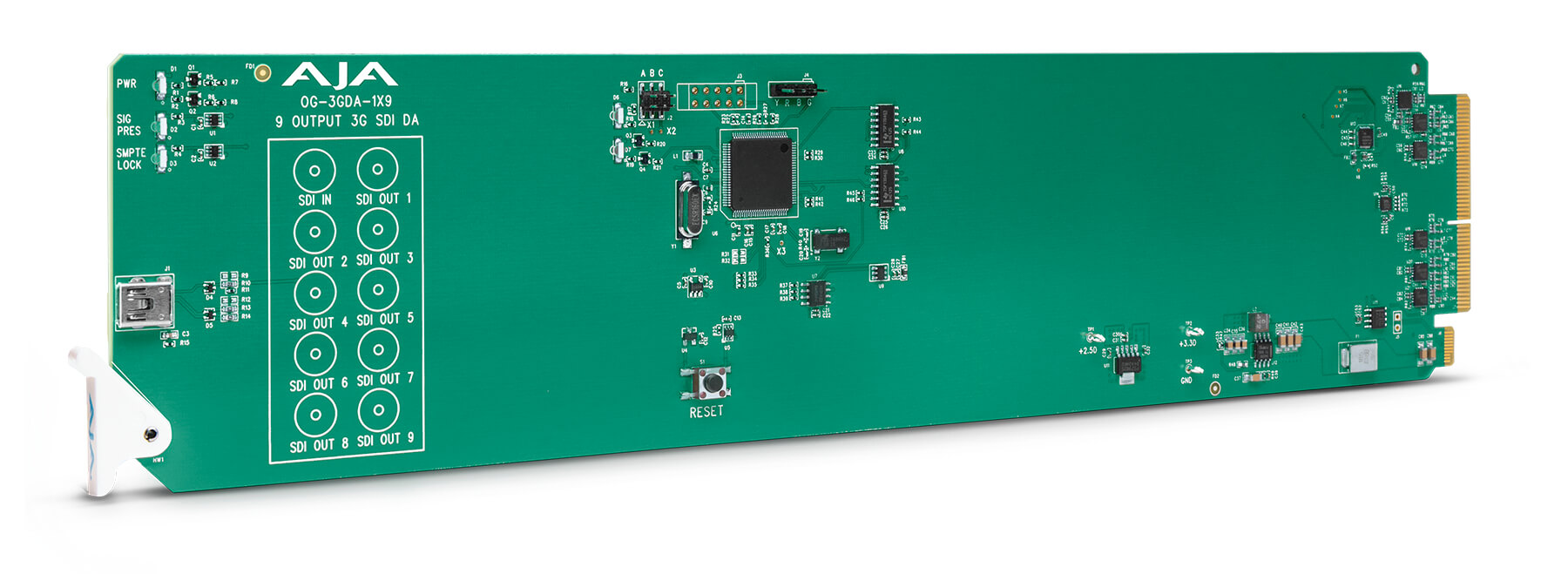

AJA OG-3GDA-1X9: 1x9 3G-SDI Re-clocking DA

AJA OG-3GDA-1X9: 1x9 3G-SDI Re-clocking DA

7 580 SEK
The OG-3GDA-1x9 is a state of the art, openGear compatible, 3G-SDI distribution amplifier. The incoming 3G-SDI signal is reclocked and distributed to each of the nine 3G-SDI outputs, allowing the same signal to be sent to multiple destinations simultaneously. Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6271

Features

  • Video Formats: 150 Mbps - 3 Gbps, format agnostic
  • Input: 1x 3G-SDI BNC
  • Outputs: 9x 3G-SDI BNC
  • Support for HDR – High Dynamic Range video
  • Monitor via openGear DashBoard
  • Passes embedded audio, all ancillary data including closed caption and time code
  • Input Present and Input SMPTE Lock LEDs
  • Automatic input equalization and output reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • Power: 2.5 watts max per card
  • Hot swappable
  • Compatible with OGX, OG3 and DFR-8321 openGear frames
