AJA OG-ROI-DVI: openGear DVI to SDI Scan Converter

AJA OG-ROI-DVI: openGear DVI to SDI Scan Converter

14 850 SEK
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6304

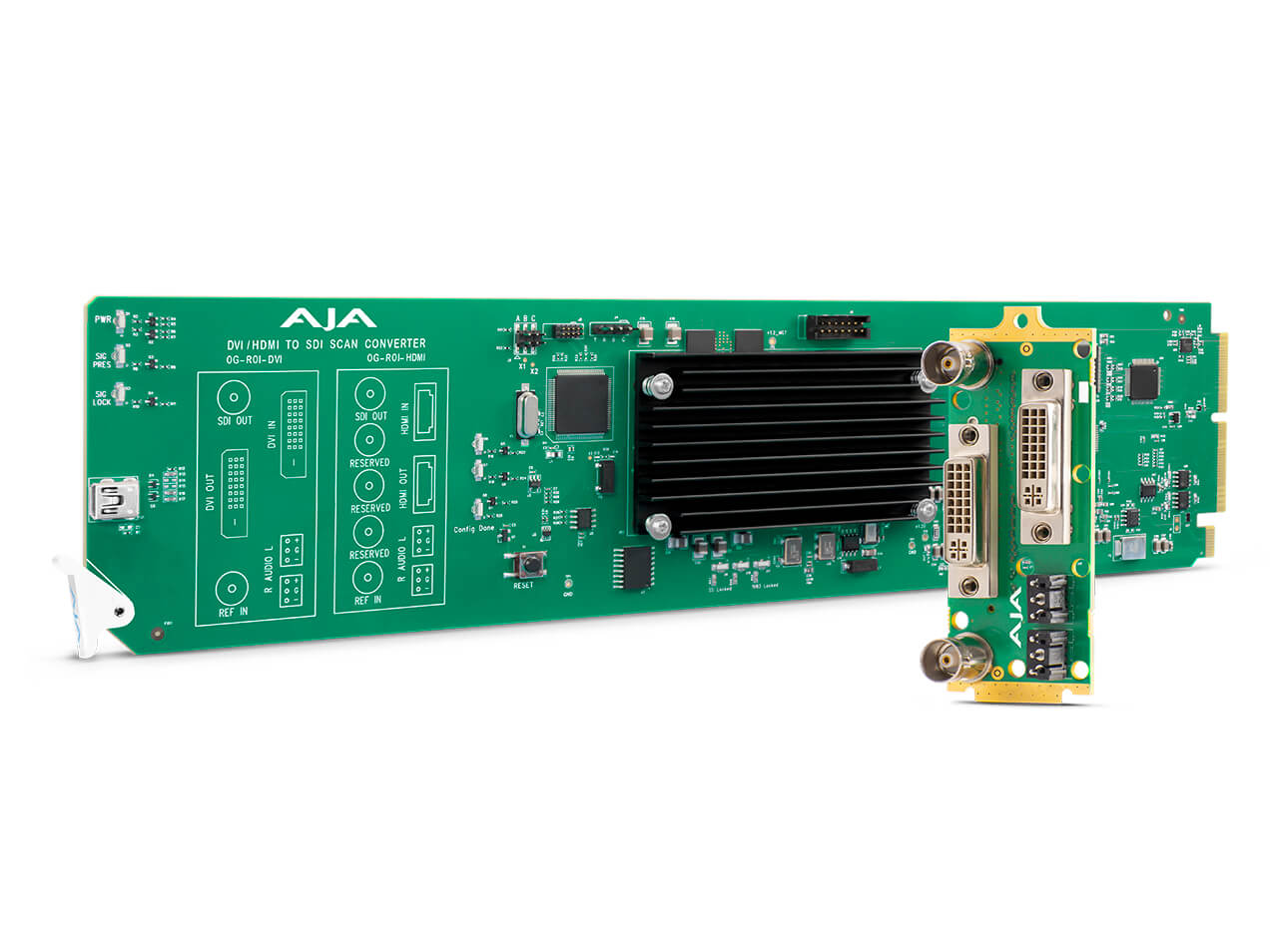

AJA’s OG-ROI-DVI is an openGear card that allows exceptionally high-quality conversion of computer and DVI signals to 3G-SDI baseband video. With incredible region-of-interest image scaling as well as aspect and frame rate conversion, OG-ROI-DVI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.

Features

  • DVI to 3G-SDI conversion
  • Region of Interest scaling
  • DVI input with loop-through
  • 3G-SDI output
  • Aspect ratio conversion and image rotation
  • Genlock input
  • Audio embedding
  • Configure via Dashboard software
  • Compatible with OGX, OG3 and DFR-8321 openGear frames
  • Five year warranty

Region of Interest

Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.

OG-ROI-DVI is fully compatible with the free Ross DashBoard application, offering interactive selection of a Region of Interest from the incoming computer signal. You have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

Take full control of aspect ratio, image rotation, and frame rate conversion with on-screen controls in the DashBoard software that shows you exactly what your source and output will look like, including the formats that are coming in and the choices you have made for the signal going out.


Connectivity

OG-ROI-DVI utilizes a direct DVI loop through, allowing it to be placed in-line so you still have a connection to a computer monitor while extracting to SDI. The reference input ensures the SDI signal out of OG-ROI-DVI is locked for use throughout a production or facility.


Audio

OG-ROI-DVI accepts 2-channel analog audio from 2x 3-pin terminal blocks connectors. The audio source can be selected in the DashBoard software and is embedded into the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.


openGearCompatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
