AJA OG-ROI-HDMI: openGear HDMI to SDI Scan Converter

AJA OG-ROI-HDMI: openGear HDMI to SDI Scan Converter

14 850 SEK
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

Leverans: Maila för leveranstid

Beskrivning

Art.nr: 132-6305

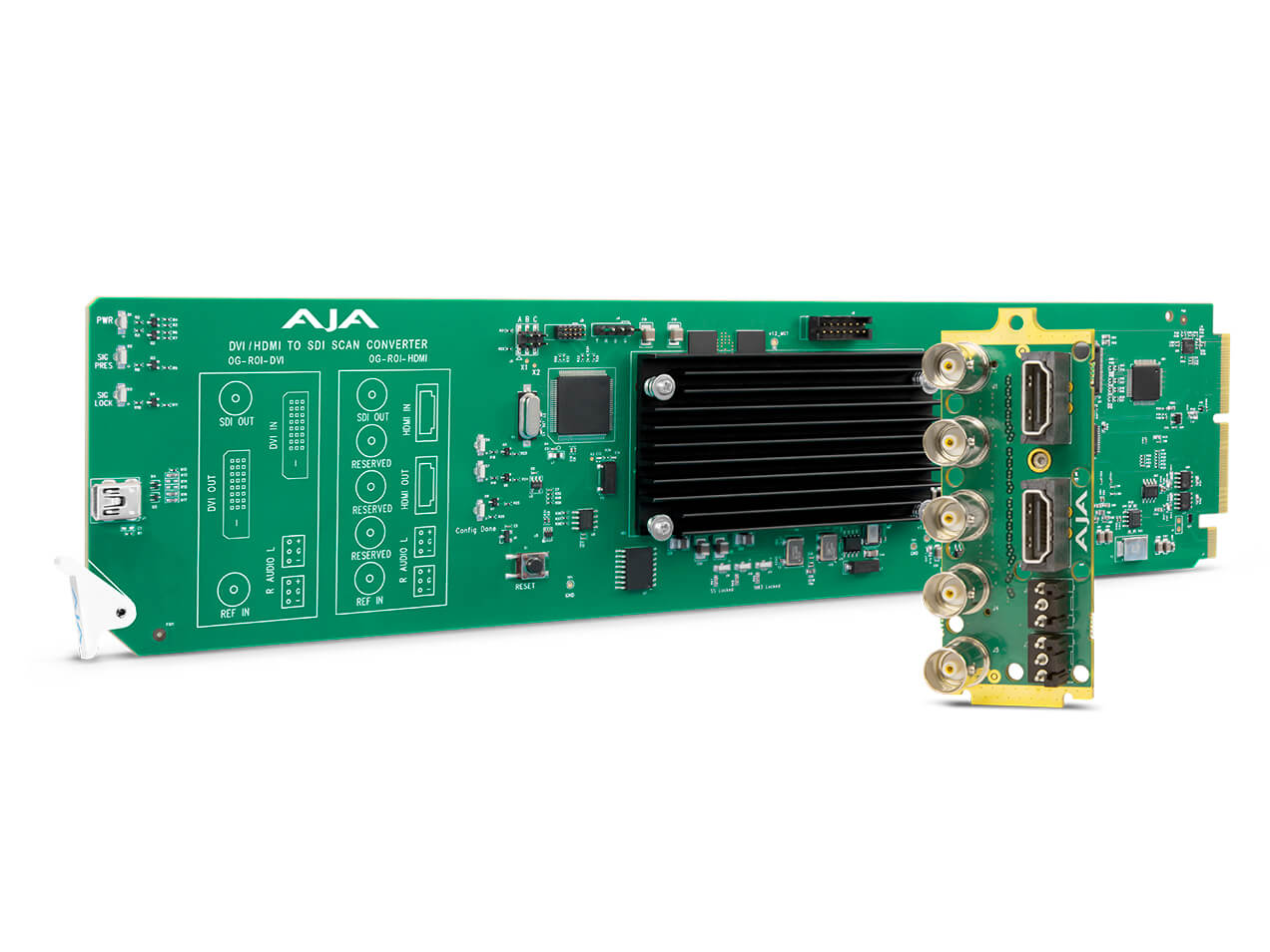

AJA’s OG-ROI-HDMI is an openGear card that allows exceptionally high-quality conversion of computer and HDMI outputs to 3G-SDI baseband video. With incredible region-of-interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-HDMI fulfills the growing need to properly incorporate extractions from HDMI sources and computer signals into the video world without sacrificing budget or space.

Features

  • HDMI to 3G-SDI scan conversion
  • Region of Interest scaling
  • HDMI input with loop-through
  • 3G-SDI output
  • Aspect ratio conversion and image rotation
  • Genlock input
  • Audio embedding
  • Configure via Dashboard
  • Compatible with OGX, OG3 and DFR-8321 openGear frames
  • Five year warranty

Region of Interest

Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.

OG-ROI-HDMI is fully compatible with the free Ross DashBoard application, offering interactive selection of a Region of Interest from the incoming computer signal. You have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

Take full control of aspect ratio, image rotation and frame rate conversion with on-screen controls in the DashBoard software that shows you what your source and output will look like, including the formats that are coming in and the choices you have made for the signal going out


Connectivity

OG-ROI-HDMI utilizes a direct loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to SDI. The reference input ensures the SDI signal out of OG-ROI-HDMI is locked for use throughout a production or facility.


Audio

OG-ROI-HDMI accepts 2-channel analog audio from the 2x 3-pin terminal blocks connectors or embedded 8-channel audio from an HDMI input. The audio source and routing can be selected in the DashBoard software and is embedded into the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.


openGearCompatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
