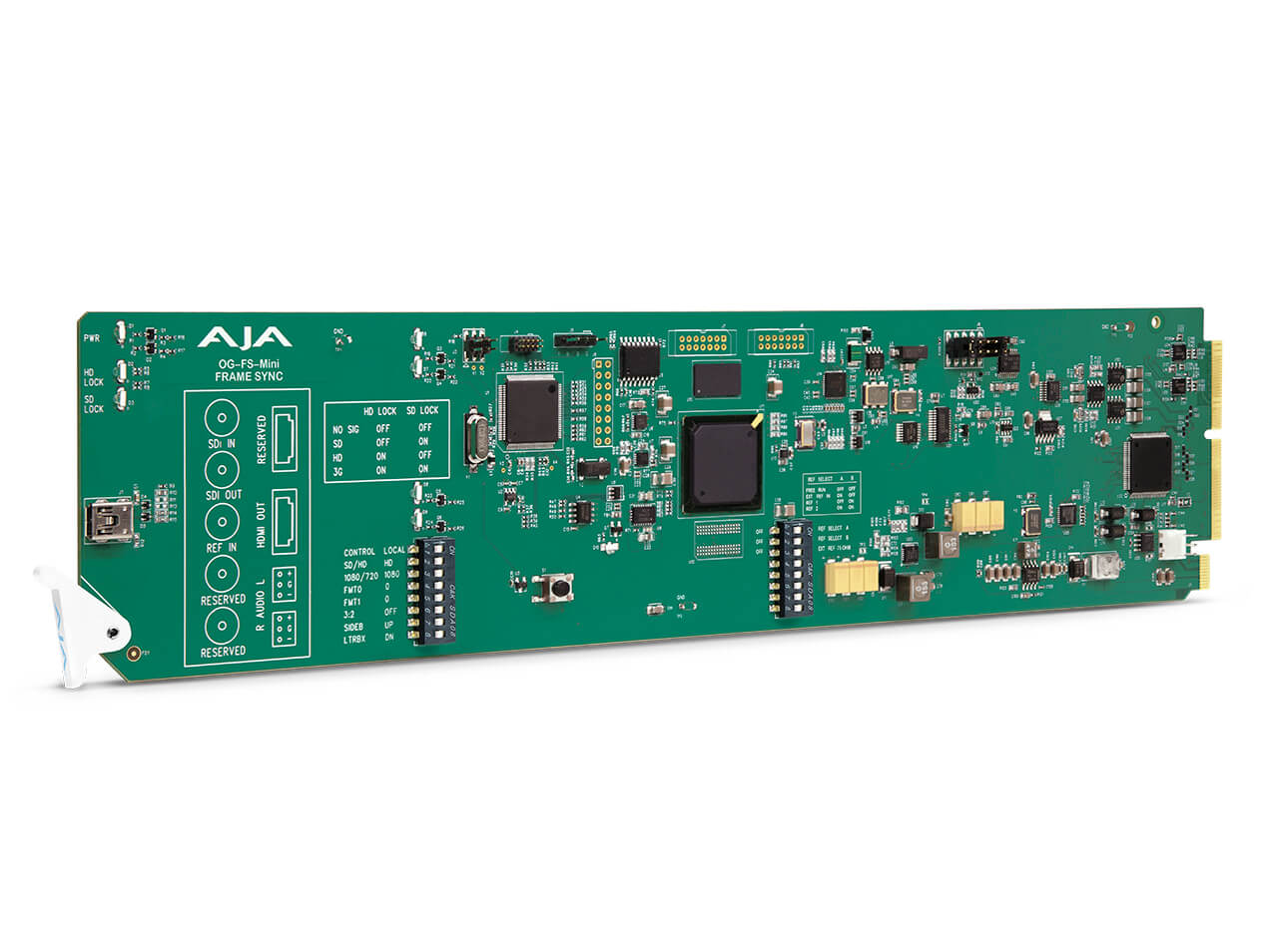

AJA OG-FS-Mini: openGear 3G-SDI Frame Synchronizer
10 460 SEK
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 132-6303
OG-FS-Mini is an openGear broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into an openGear card, supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.
OG-FS-Mini allows users to synchronize and convert a wide range of video formats to their house standard with a 3G-SDI input and output, HDMI output, and two 3-pin terminal block connectors for balanced analog audio outputs. The OG-FS-Mini also provides high quality up, down, cross-conversion.
OG-FS-Mini is designed for use in high-density openGear’s 2RU frames including AJA’s OG-X-FR frame. DashBoard software support on Windows®, macOS® and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.
OG-FS-Mini allows users to synchronize and convert a wide range of video formats to their house standard with a 3G-SDI input and output, HDMI output, and two 3-pin terminal block connectors for balanced analog audio outputs. The OG-FS-Mini also provides high quality up, down, cross-conversion.
OG-FS-Mini is designed for use in high-density openGear’s 2RU frames including AJA’s OG-X-FR frame. DashBoard software support on Windows®, macOS® and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.
Features
- openGear compatible card
- Utility frame sync function times input signals to an external reference
- Supports bi-level and tri-level references
- High quality 10-bit video processing
- Low latency processing, nominal video delay of 1 frame
- Freeze (on input signal loss) to black or last good frame
- Supports 1080p, 1080i, 720p, 625i, 525i, and SDI input signals
- Simultaneous SDI and HDMI outputs
- 16-channel embedded SDI audio I/O
- 8-channel HDMI output audio
- 2x 3-pin terminal block connectors for analog audio output
- Utility frame rate conversion, supports 3:2 pulldown
- Up, down, cross conversion between 3G, HD and SD video formats
- AFD input detection, down-convert control
- Remote configuration through Ross DashBoard software
- Rear I/O card included
- Compatible with OG-X-FR, OG3 and DFR-8321 openGear frames
- Five year warranty
NOTE: OG-FS-Mini converts 3G-SDI Level A formats only. It does not input or output 3G-SDI Level B.
openGearCompatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
