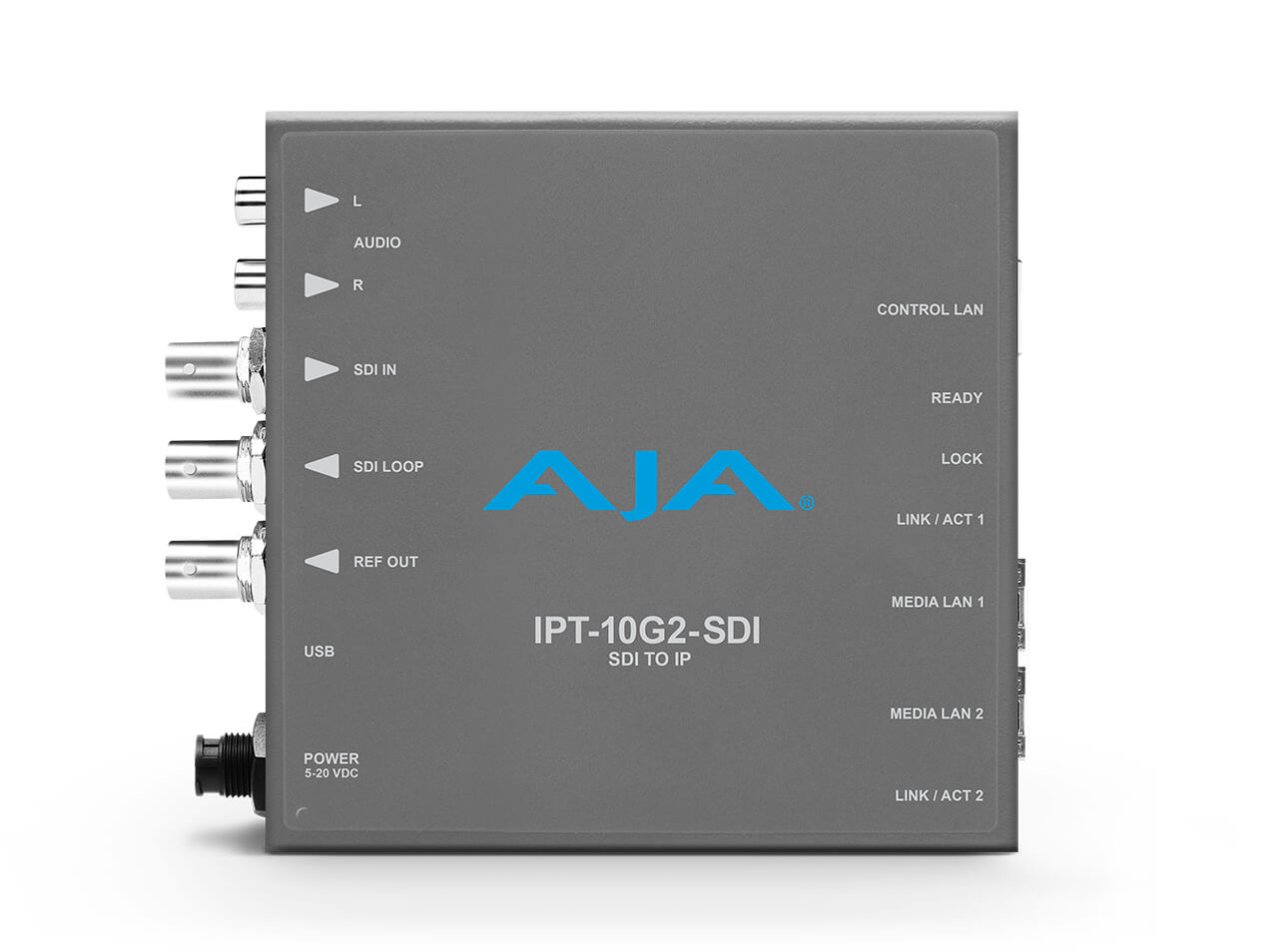

AJA IPT-10G2-SDI: 3G-SDI to SMPTE ST 2110 Video/Audio IP Encoder
20 710 SEK
- Betala säkert med kort
Leverans: Maila för leveranstid
Beskrivning
Art.nr: 132-6253
IPT-10G2-SDI is designed to integrate traditional 3G-SDI video sources into SMPTE ST 2110 IP Video infrastructure.
The IPT-10G2-SDI receives baseband video plus up to 16 embedded audio channels over 3G-SDI, then formats the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the steam from the included RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” (ST 2022-7) redundancy protection for critical transmission environments.
The IPT-10G2-SDI receives baseband video plus up to 16 embedded audio channels over 3G-SDI, then formats the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the steam from the included RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” (ST 2022-7) redundancy protection for critical transmission environments.
Features
IPT-10G2-SDI transmits a SMPTE ST 2110 essence from an incoming 3G-SDI input source. Providing two SFP+ cases for protection with "hitless switching" (ST 2022-7), it's rugged, fanless, Mini-Converter design is ideal for placement in a wide range of scenarios, from on-set to in the studio.
Key features:
- SMPTE ST 2110 audio, video transmitter
- Rugged, quiet, fanless design
- 1x 3G-SDI input up to 1080 60p, 4:2:2, 10-bit, YCbCr
- 2x 10 GigE SFP+ cages for media LAN (providing support for ST 2022-7 hitless switching) with status light
- 1x 1 GigE RJ-45 socket for control LAN with status light
- Full 10-bit pixel processing pipeline
- 2x RCA analog audio input
- 1x mini-USB port for initial network configuration with AJA eMini-Setup software
- Complete control interface on any web browser from a built-in web server
- Customizable control with AJA REST API
- Five year international warranty and support
