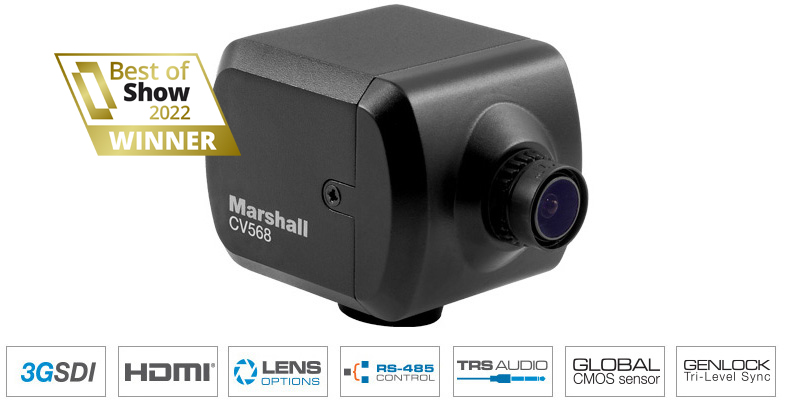

Marshall CV568 Mini global kamera med genlock (3GSDI & HDMI)

Marshall CV568 Mini global kamera med genlock (3GSDI & HDMI)

10 996,80 SEK
Miniature HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and interchangeable M12 lens mount (comes with a 4.4mm - 84°) make this the most capable POV camera in the miniature camera lineup.
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

I lager: 1

Leverans: Finns i lager

Beskrivning

Art.nr: 150-6467OUT

New Global Shutter CMOS Technology

Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.

Genlock Tri-Level Sync Feature

Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.

25% Larger Pixel Size

Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size.

Durable, Flexible, Powerful

Marshall Miniature Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.


  • Large 1/1.8" Global Shutter Sensor
  • 3.2 Megapixels with 25% larger pixel size
  • Simultaneous 3GSDI & HDMI outputs
  • Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
  • Flexible Interchangeable Lenses – 12MP 4.4mm (100° AOV) comes standard
  • Tri-Level Sync (Genlock) for faster, more accurate camera switching
  • SMPTE 424M (2.97Gbps) - 3GSDI:
    • 1920x1080p @ 50, 59.94, 60fps
  • SMPTE 292M (1.485Gbps) - HDSDI:
    • 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
    • 1920x1080i @ 50, 59.94, 60fps
    • 1280x720p @ 50, 59.94, 60fps
  • Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
  • Microphone/Line Level input with 2.5V Mic bias
  • Color Matrix control: Style, Master level/phase, Color level/phase
  • Environmental: -10°C ~ 50°C
  • Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw
