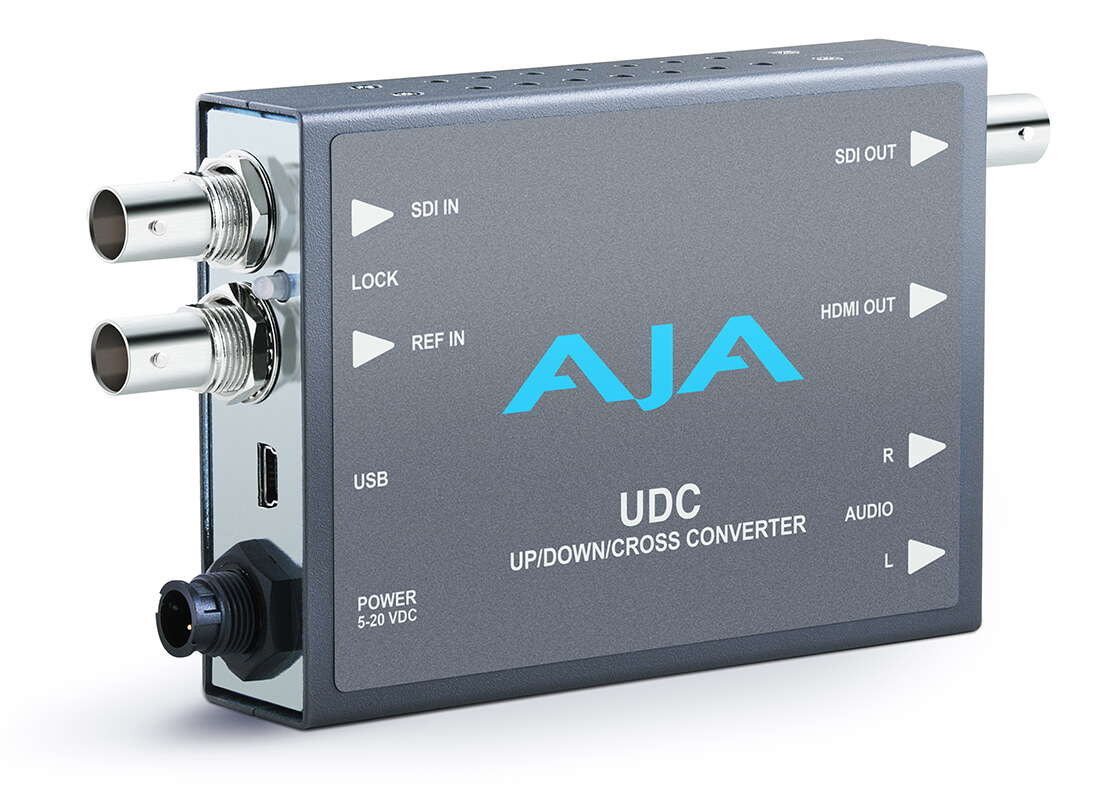

AJA UDC: Up/Down/Cross Converter - OUTLET

AJA UDC: Up/Down/Cross Converter - OUTLET

5 950 SEK
The AJA UDC Up/Down/Cross Mini-Converter performs broadcast-quality 10-bit conversions between SD, HD and 3G video formats. It uses the same technology as used on the AJA FS2 and provides very high-quality conversions.
Läs mer...
Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

Du kommer bli meddelad när produkten finns i lager.


  • Betala säkert med kort

I lager: 2

Leverans: Finns i lager

Beskrivning

Art.nr: 132-1525OUT

UDC

Up/Down/Cross-Converter

The UDC is a broadcast quality Up/Down/Cross Mini-Converter which can convert between SD, HD, and 3G video formats. Using the same AJA industry leading conversion technology as in our model FS2, the UDC provides very high quality conversions at a low price. I/Os include SD/HD/3G SDI Input and Output, HDMI output, and 2-channel RCA style audio output. The UDC can be controlled by local dipswitches with additional control available via USB and AJA's MiniConfig application. A Reference Input allows the UDC to be locked to a local reference.

Features

  • Converts between SD, HD, and 3G HD formats
  • Supports 1080p50/60
  • Very high quality conversions
  • 16-channel embedded SDI audio input
  • 16-channel embedded SDI audio output
  • 8-channel HDMI audio output
  • 2 RCA-style analog outputs at -10dBV (nominal)
  • Reference Input
  • Configure via Dipswitch or USB port and supplied MiniConfig software
  • Uses 5-20V power supply (included with purchase)
  • five year warranty
