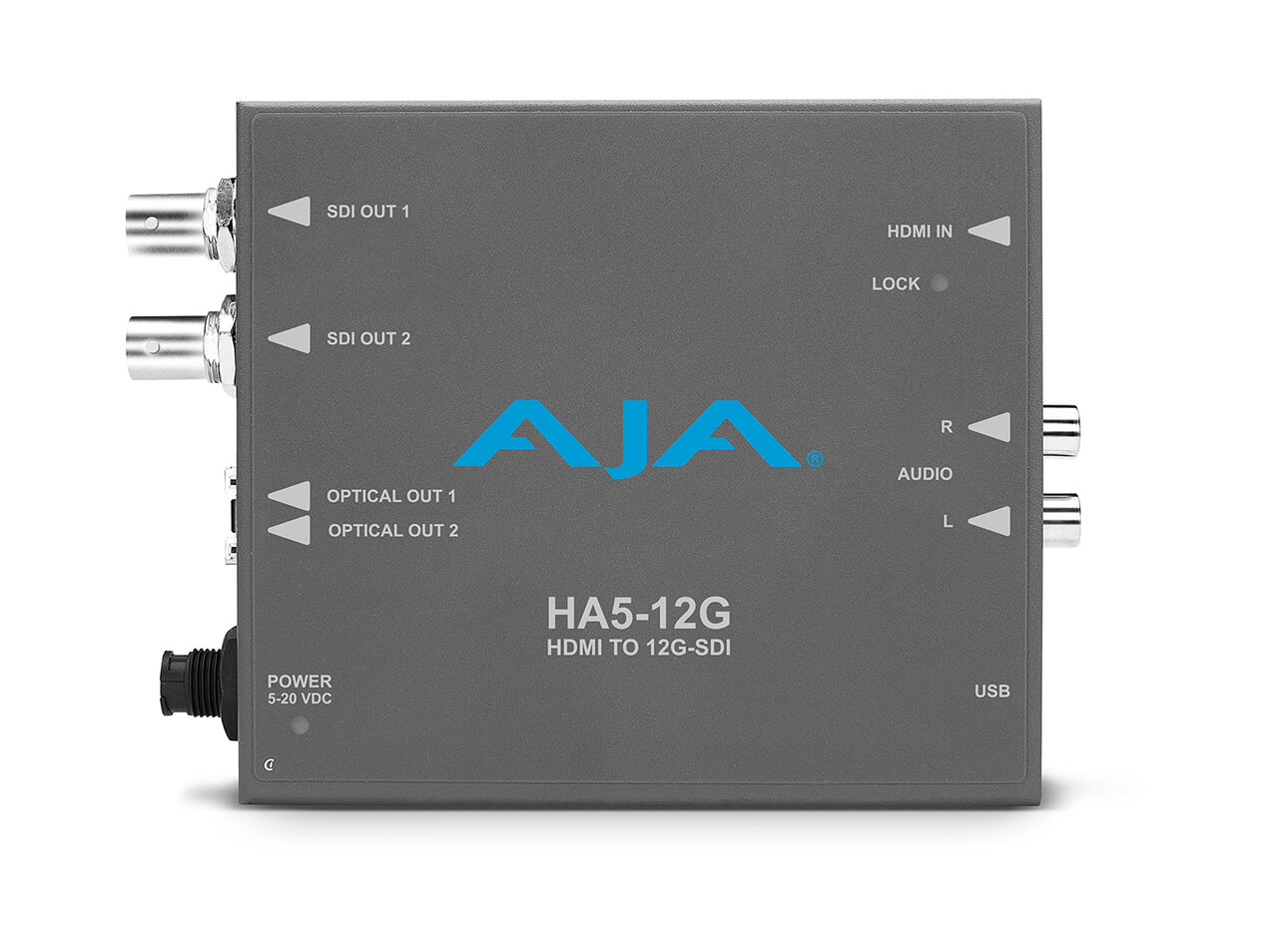

AJA HA5-12G-T - HDMI 2.0 to 12G-SDI Converter with Single Fiber Transmitter - OUTLET
- Betala säkert med kort
I lager: 1
Leverans: Finns i lager
Beskrivning
Art.nr: 132-6210OUT
AJA’s HA5-12G-T allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G-T supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.
Fiber SFP equipped HA5-12G models are available (please see separate listings), including the HA5-12G-T single channel transmitter, which extends HDMI source 4K signals over long distances (10 km Single Mode). The HA5-12G-2T dual channel transmitter offers two 12G-SDI coaxial outputs and two 12G-SDI over Fiber outputs to simultaneously enable HDMI 4K source extension to multiple locations without a distribution amplifier.
Features:
- Convert an HDMI 2.0 input with up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA) to two 12G-SDI single link outputs with eight or two channels of digital embedded audio
- Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
- Transmits two DA 12G-SDI signals on each SDI output, reducing cable runs when transporting 4K/UltraHD SDI
- Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
- HA5-12G-T ships with FiberLC-1T-12G SFP installed
- Includes a DWP-U power supply and USB port for firmware updates
- Five year warranty
